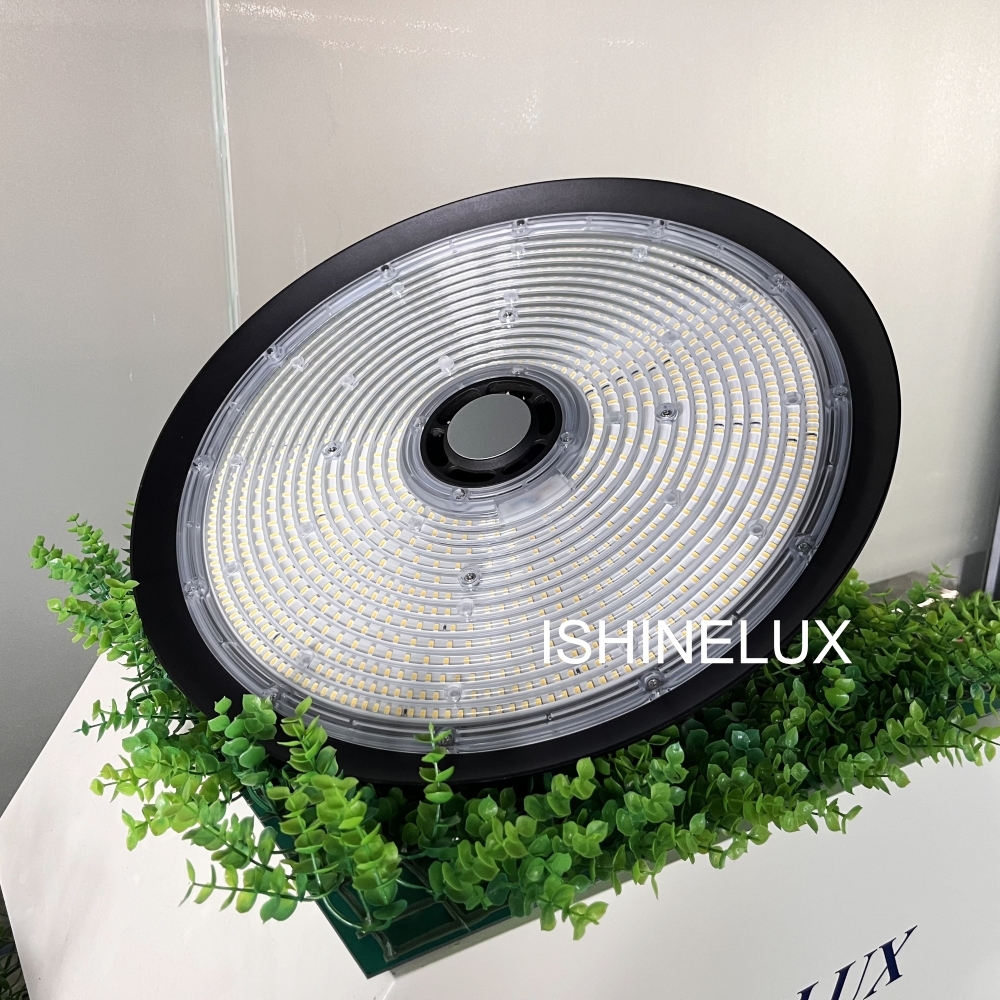

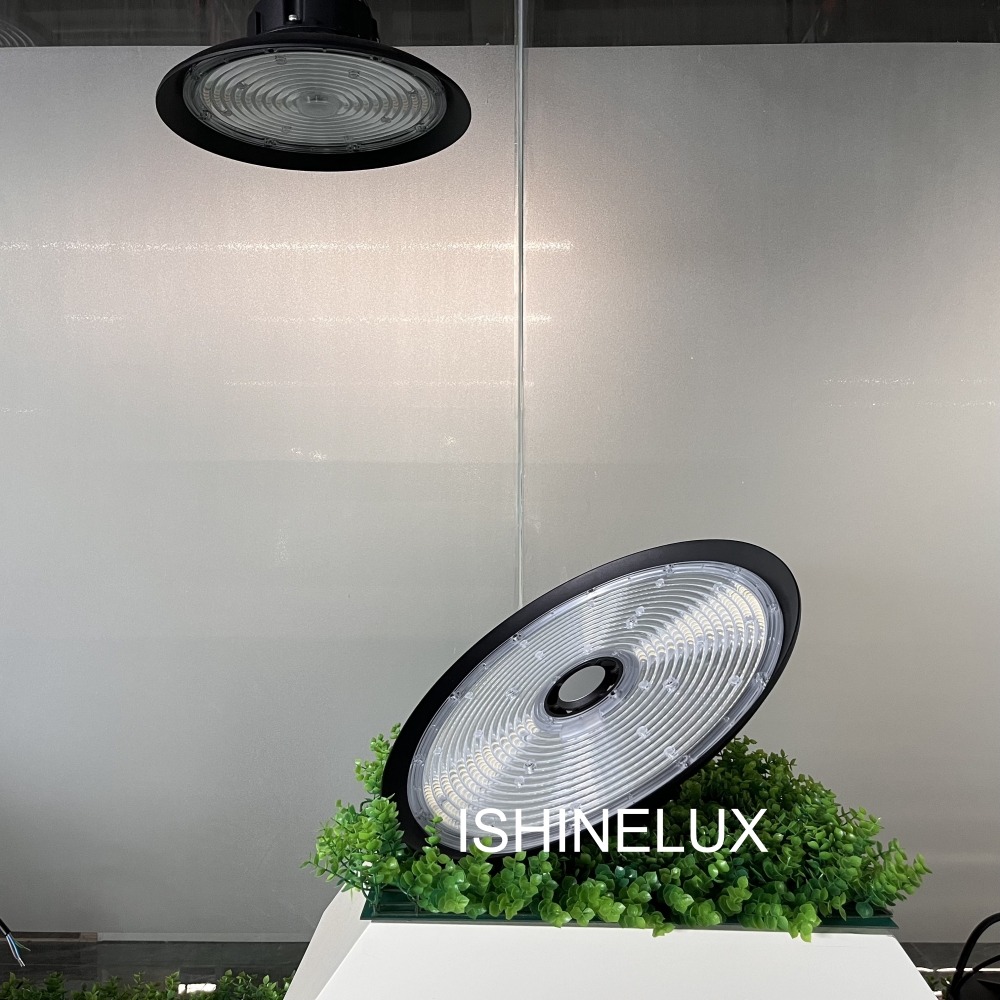

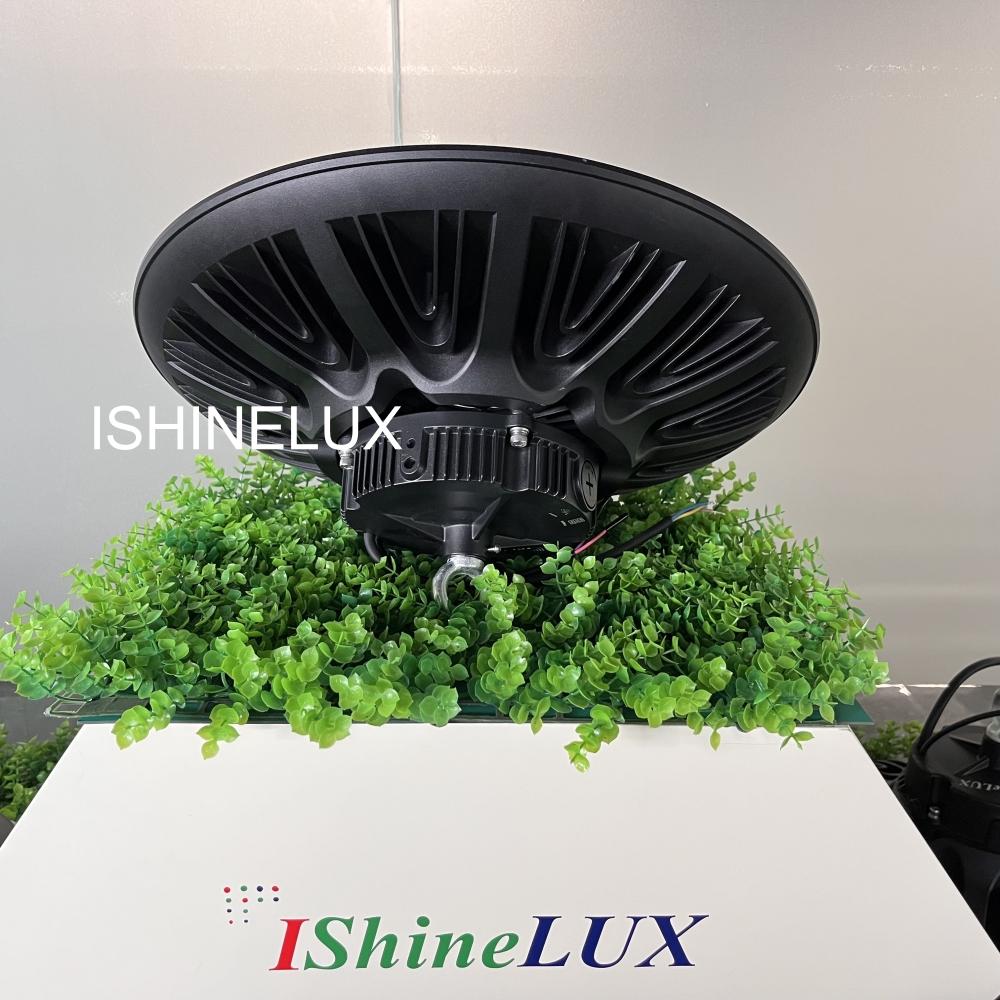

UFO LED High Bay Light 100W 150W 200W 300W 400W 500W High Power Factory Warehouse Lighting

Product Description

Product Description
IP65 LED High Bay Light 60W 100W 150W 200W 240W 300W 400W 500W

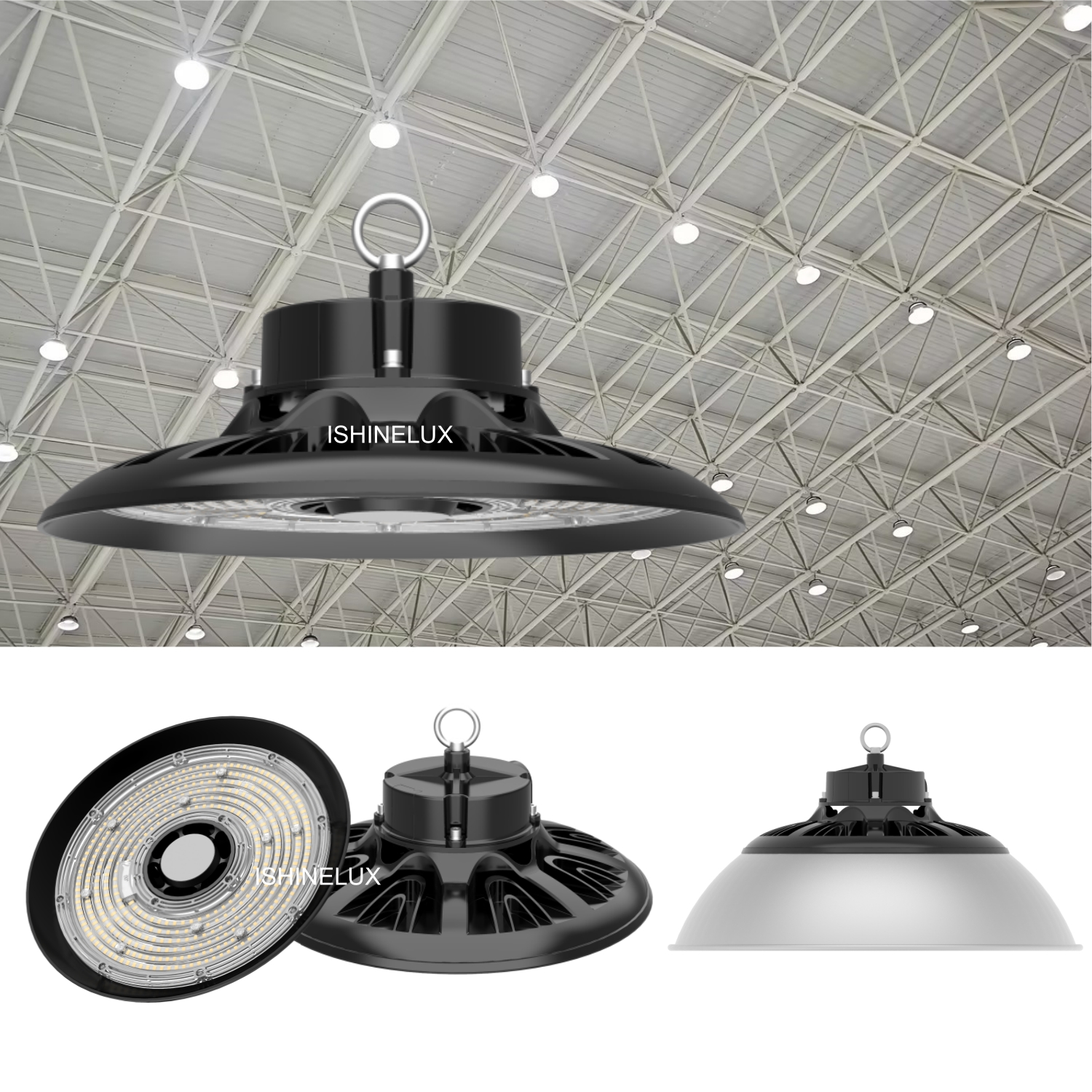

IP65 LED High Bay Light
  • Elegant HB18 High Bay Light are available in 60W, 100W, 150W, 200W, 240W, 300W, 400W and 500W
  • Up to 150lm/W, 170lm/W, 190lm/W
  • 1-10V Dimmable & Power selectable
  • Optical UV resistant PC lens with 94% light transmittance, IK08
  • Die-casting technology by ADC12, excellent thermal management
  • Top brand LED chip and driver, ensure the product quality and lifetime
  • 5Years / 7Years warranty

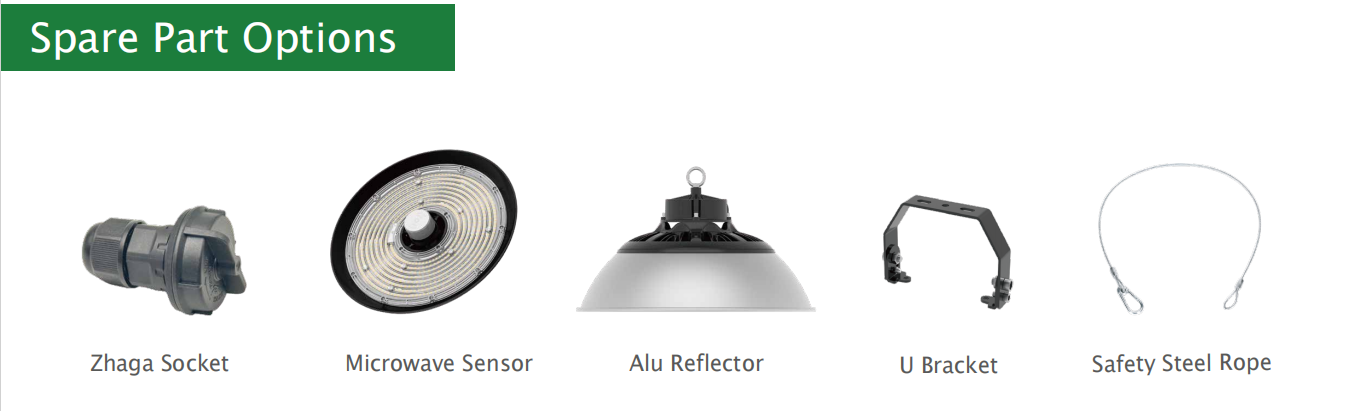

  • Options: Motion Sensor (plug and play)
  • Options: 3CCT & Power Adjustable
Specification
Product Specification: Elegant HB18 UFO High Bay Light 60W-500W
60W Dimension ø233*145mm
100W Dimension ø260*145mm
150W Dimension ø287*147mm
200W Dimension ø305*149mm
240W Dimension ø305*149mm
300W Dimension ø342*168mm
400W Dimension ø447*178mm
500W Dimension ø447*178mm
Input Voltage 100-277VAC, 50/60Hz
Light Efficiency 150lm/W (170lm/W, 190lm/W available)
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI 80Ra
Beam Angle 60°, 90°, 120° (60W-300W), 40°/60°/90° (400W-500W)
Solution options 1-10V (Standard) / Emergency / 3CCT & 3Power
IP Rating IP65
IK Rating IK08
Warranty 5 Years

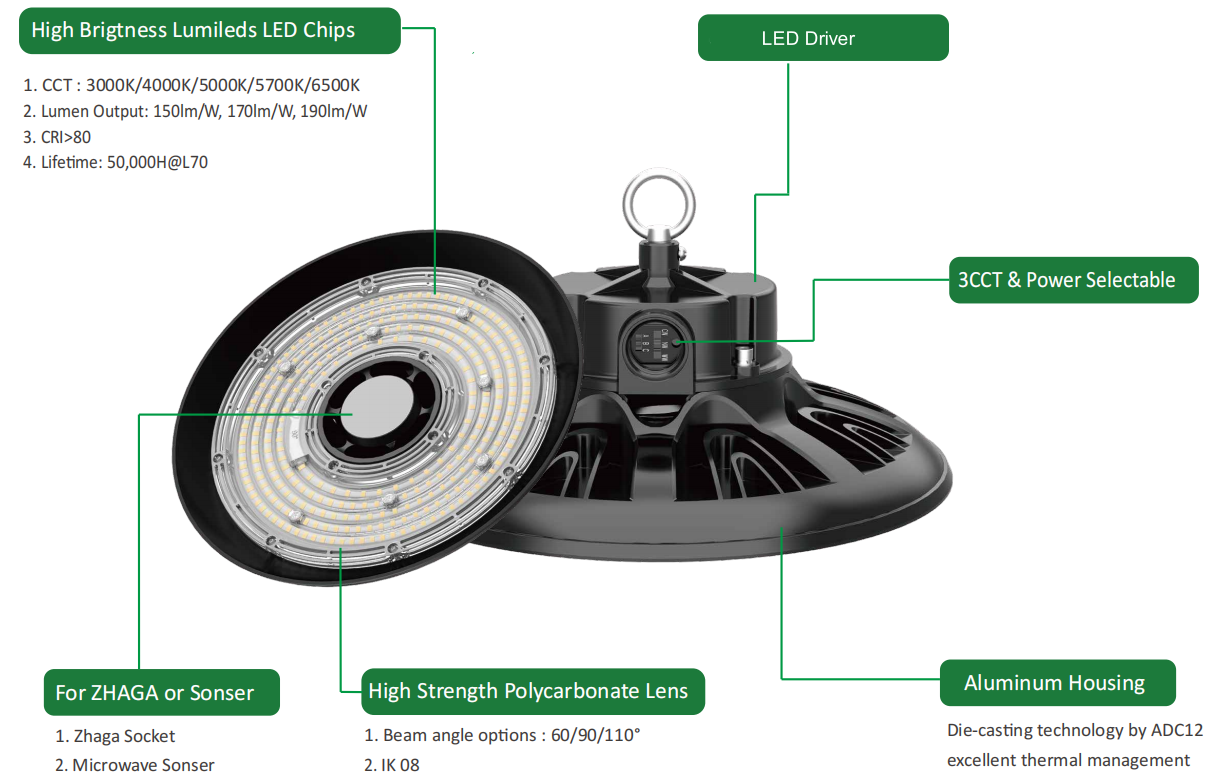

High Bay Light Dimension Drawing 1

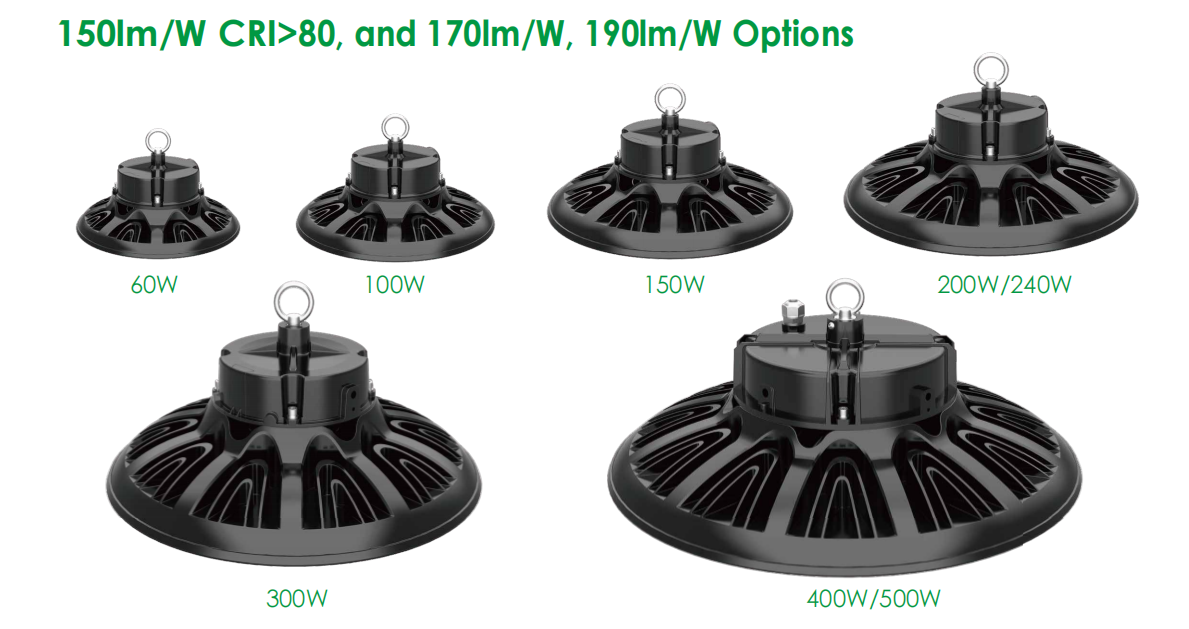

High Bay Light Dimension Drawing 2
High Bay Light Photometric Data
Details Images
Detail View 1

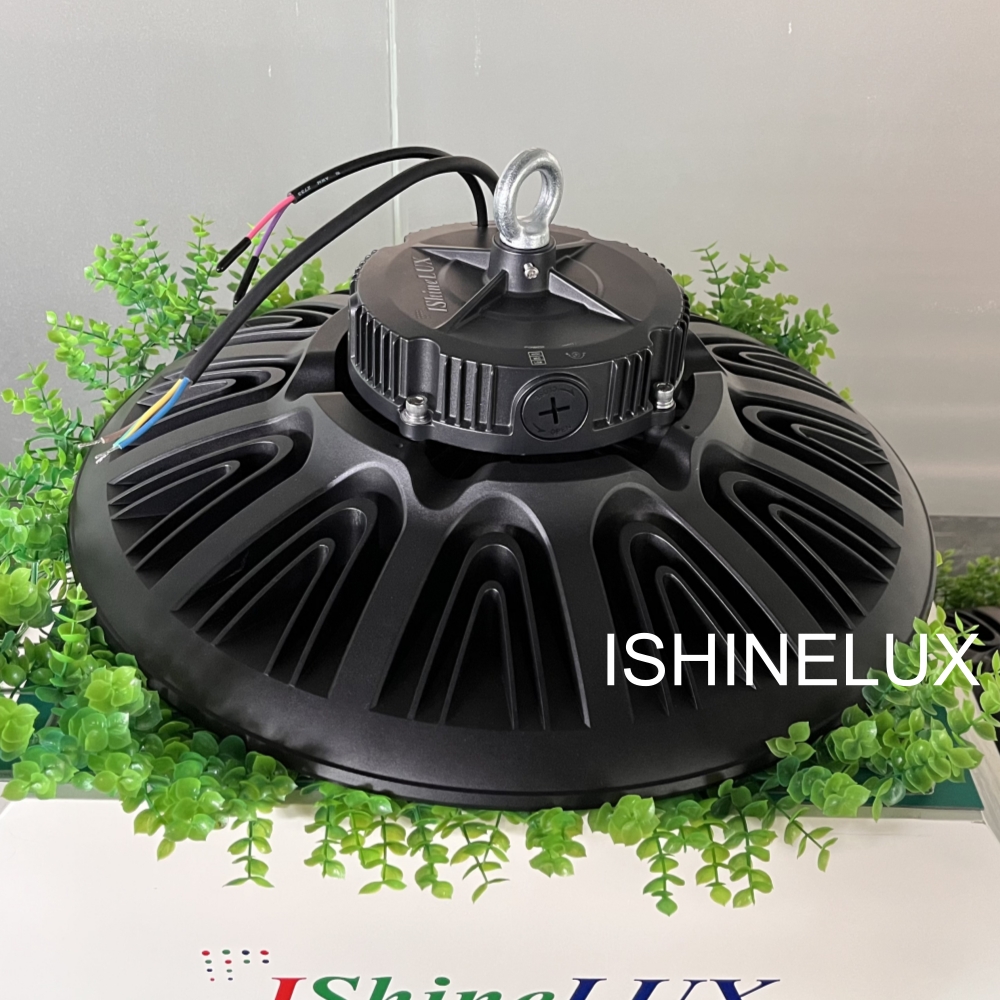

Detail View 2

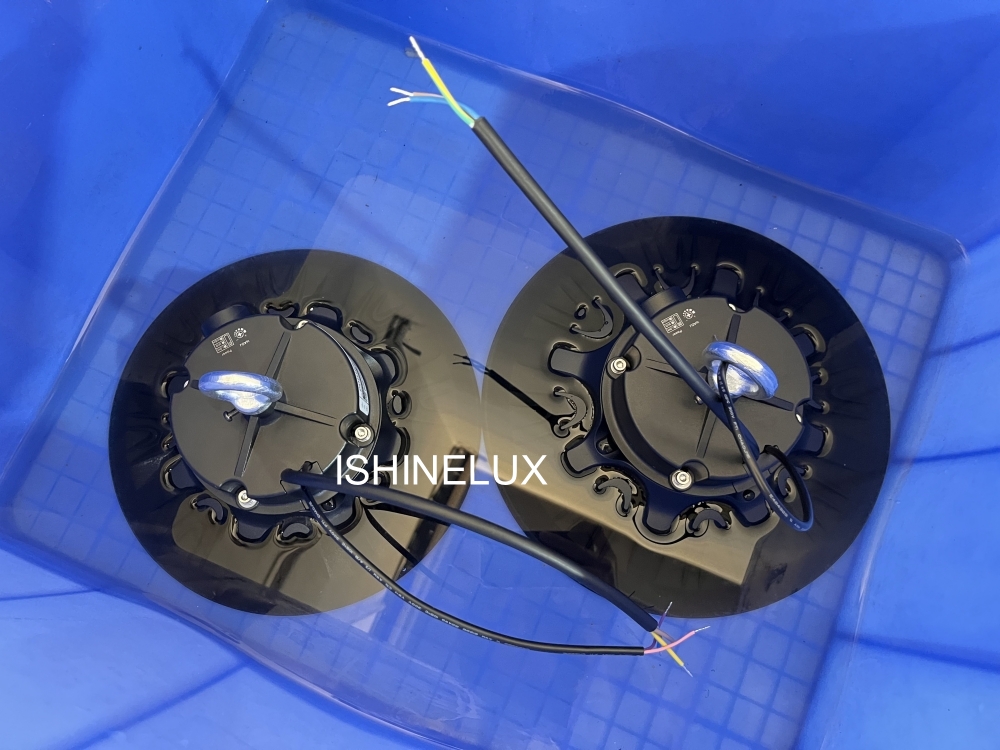

Detail View 3

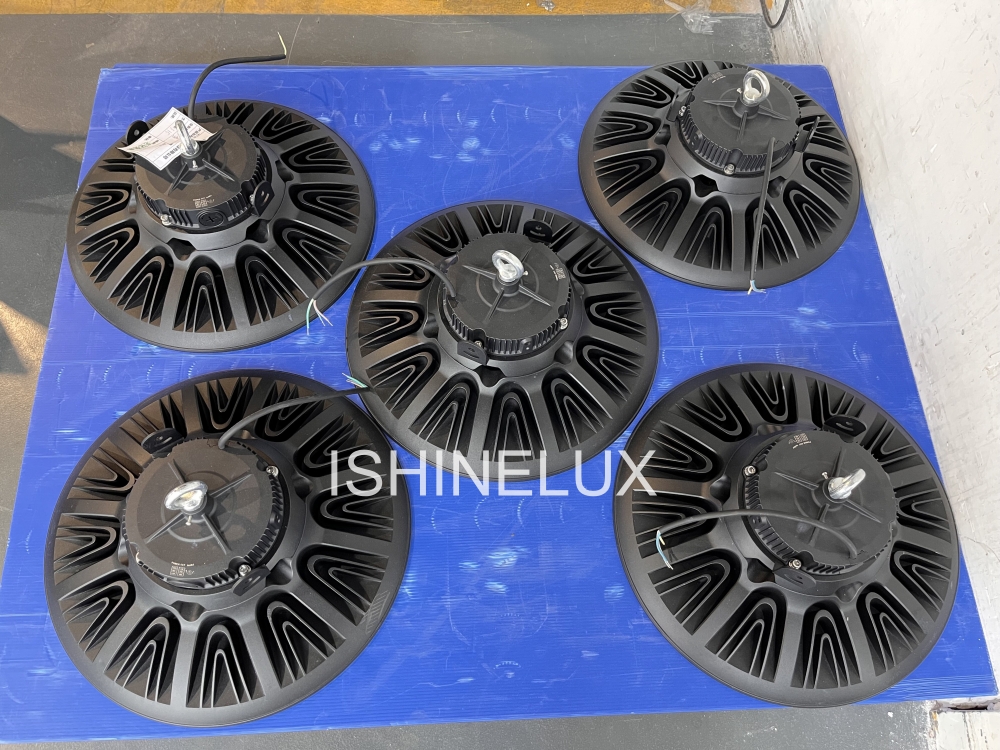

Detail View 4

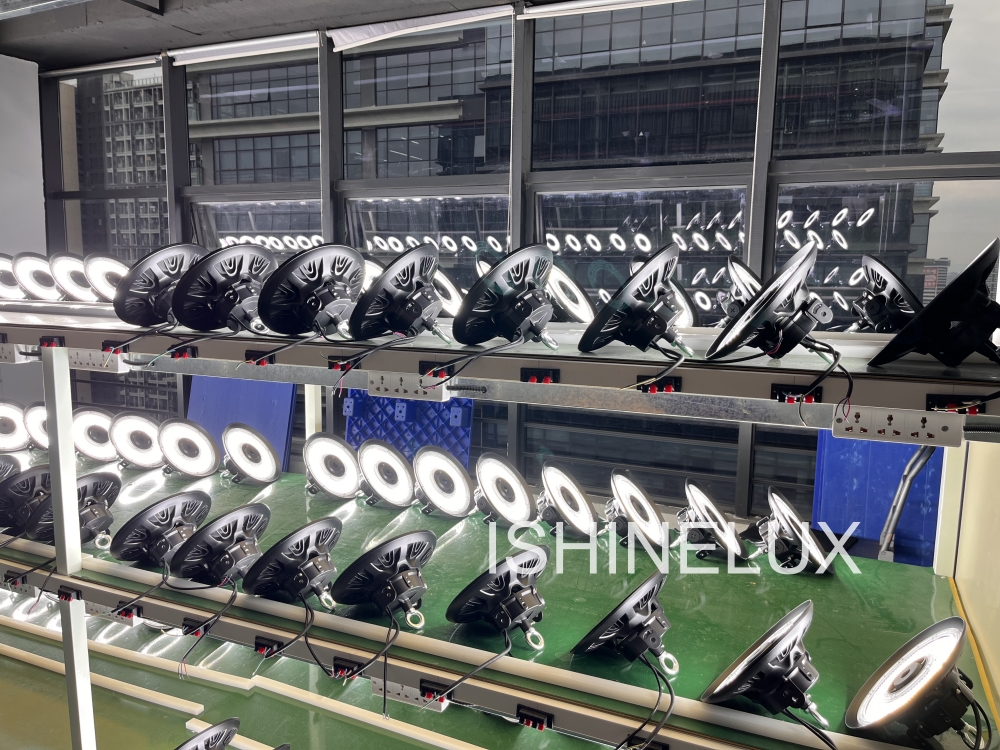

Detail View 5

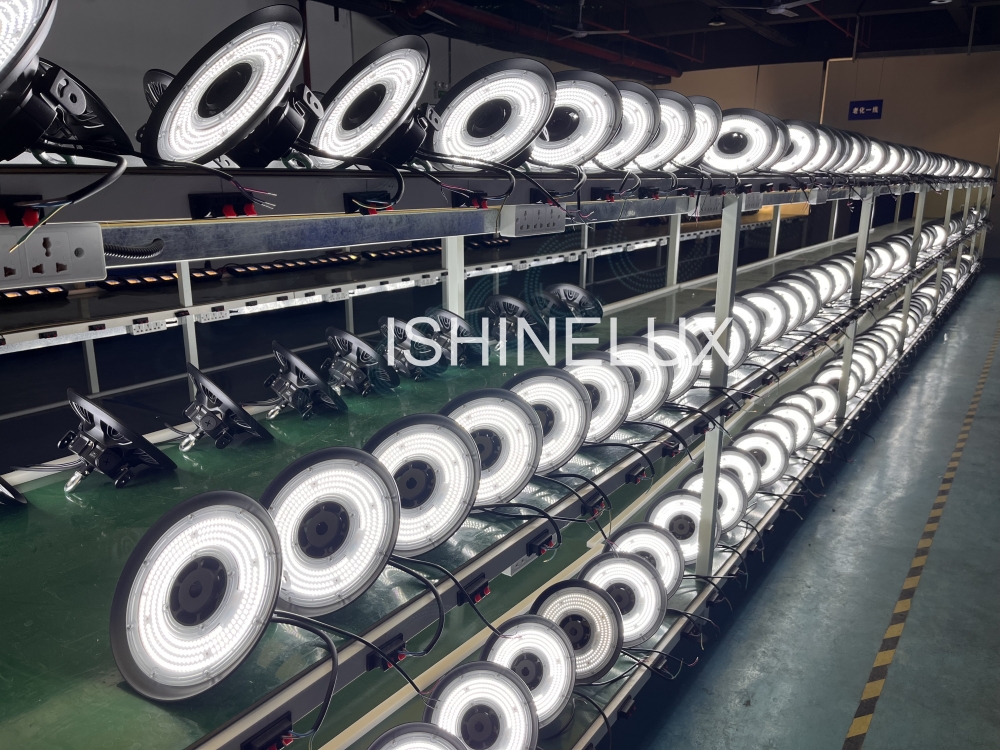

Detail View 6
Installation

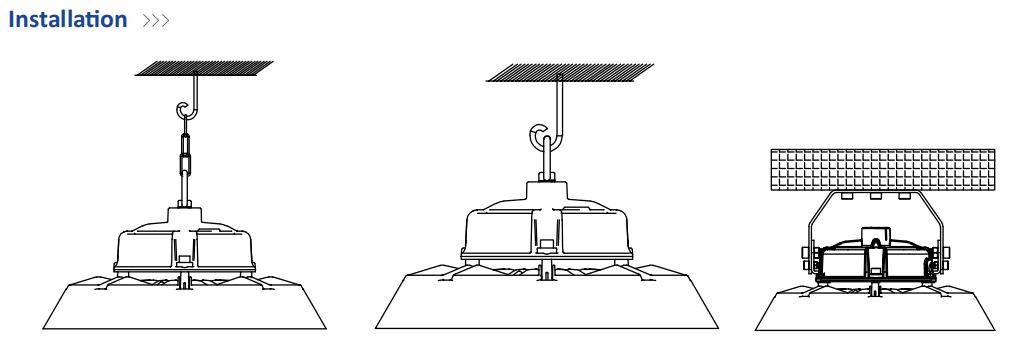

Installation Guide
Application Scenario

It can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Logistics Center, Gas Station, Indoors Stadium Light, Highway Toll Station, etc.

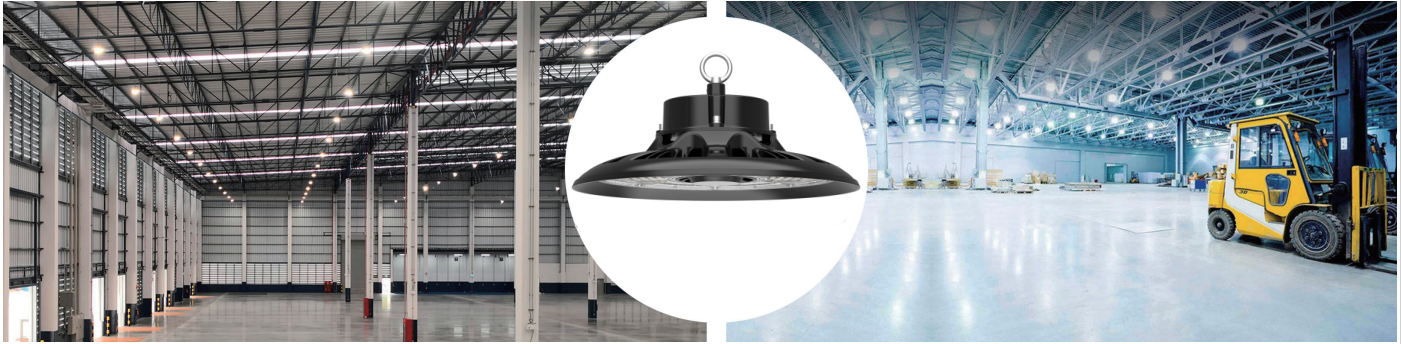

Application Scenarios
Production & Services

Let the premium LED lights light up your space. Our lighting products cover UFO high bay, linear high bay, sports/ high mast light, flood light, tunnel light, street light, parking lot light, explosion-proof light and high temperature light. We have a strong R&D and sales team back up for your outdoor led lighting project. Many series led lights are available for your choose. We provide OEM/ODM service. Looking for long term strategic business partners. Welcome to join us.

Factory Overview 1
Factory Overview 2
Factory Overview 3
FAQ
Q1 What types of customized LED lights are available in your range?
We offer a wide variety of specialized LED configurations:
  • Sports & High Mast Light: 120W-2400W
  • Flood Light: 10W-500W
  • UFO High Bay Light: 100W-300W
  • Linear High Bay Light: 50W-200W
  • Street Light: 30W-240W
  • Tunnel Light: 50W-600W
  • Explosion-proof Light: 50W-240W
  • High Temperature Light: 150W-800W
Q2 What are the primary applications of these LED lighting solutions?
Our lights are highly versatile and ideal for:
  • Sport fields (Baseball, Basketball, Cricket, Golf, Football, Soccer, Tennis)
  • Transportation hubs (Airports, Bridges, Wharfs, Tunnels, Tower Cranes)
  • Commercial & Industrial (Warehouses, Logistics Centers, Factories, Cold Storage)
  • Outdoor spaces (Streets, Roads, Parking Lots, Gardens, Parks, Billboards)
Q3 How do you manage product quality control?
We implement a strict QC management structure aligned with ISO9001 and ERP protocols. Every single product undergoes a rigorous testing phase and QC check before dispatch.
Q4 What is the typical production lead time?
Sample orders are completed within 3 to 7 days. Standard mass production orders generally take between 10 to 20 working days, depending on quantity.
Q5 Can we customize products with our own label and design (OEM/ODM)?
Yes, we support complete OEM & ODM customization services, including custom labels, color modifications, and tailored lighting specifications to fit your requirements.
Q6 What is the warranty period for your industrial LED lights?
We stand behind our product quality by providing robust 5-year and 7-year warranty terms.
