Engineered for high efficacy, strict compliance, and maximum durability across commercial and industrial environments.
Understanding the strict parameters of commercial canopy lighting deployment and global trade regulations.
In modern industrial and commercial architectures, the canopy area poses unique challenges. Be it the hazardous, explosive-gas environment of a petroleum dispensing station, the harsh moisture and humidity of intensive agricultural vertical farming, or the heavy-duty demands of industrial transit hubs—canopy lighting fixtures must meet strict thermal, mechanical, and photobiological design thresholds. B2B procurement managers and EPC contractors are no longer just comparing pricing per unit; instead, they analyze system longevity, optical distribution profiles, third-party global certifications (like TUV, CE, RoHS, UL, and DLC), and real-world system efficacy.

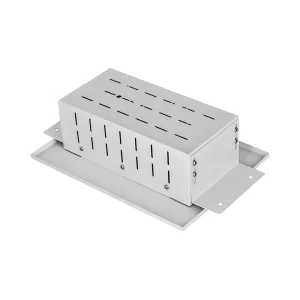

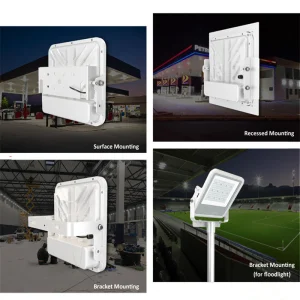

Petroleum and gas stations require highly reliable lighting capable of continuous operation in semi-outdoor environments subject to fluctuating temperatures, rain, and dust. Recessed ceiling mounted systems must guarantee a minimum rating of IP65 or IP66, explosion-proof integrity, and anti-glare optical diffusers. The goal is to provide maximum uniformity on the pump lane, ensuring safety, reducing driver eye strain, and optimizing energy consumption by up to 70% compared to legacy metal halide lights.

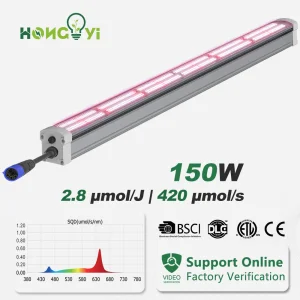

A rapidly growing macro sector is Under-Canopy Lighting (UCL) for indoor plants and high-yield floriculture. Placing slim LED grow lights directly under the leafy canopy delivers critical photons directly to lower bud sites and shaded foliage. High Photosynthetic Photon Efficacy (up to 2.9 - 3.0 µmol/J) and custom spectra (combining Samsung LM301H and deep-red 660nm / far-red 730nm wavelengths) drastically improve overall harvest biomass and crop uniformity while preventing lower leaf senescence.
A side-by-side comparison of industrial gas station canopy lights vs. horticultural under-canopy grow lights.
| Technical Parameters | Industrial Gas Station Canopy Lights | Horticultural Under-Canopy Grow Lights |
|---|---|---|
| Common Wattage Range | 80W, 100W, 120W, 150W, 200W | 120W, 150W, 240W |
| Ingress Protection (IP) | IP65 / IP66 Recessed / Ceiling Mounted | IP66 Waterproof & Corrosion Resistant |
| Light Source / Chipset | Philips / Lumileds high-efficacy SMD | Samsung LM301H Evo / LM281b / Osram Red |
| Optical/Spectrum Output | 4000K - 6000K Daylight, High Lumen Output | Full Spectrum (Deep Red 660nm + Far Red 730nm) |
| Thermal Management | Die-cast aluminum ADC12 integrated heat sink | Extruded aluminum bar for passive cooling |
| Dimmability / Control | 0-10V / Motion & Photocell Sensor integration | Daisy chain control, manual dimmer dial |
| Key Approvals | TUV, CE, RoHS, Explosion-proof designs | CE, RoHS, IP66 Certificate, PPE test reports |
Where canopy lighting is headed in the next 5 years: smart integration, spectrum tuning, and solar hybrid designs.
The integration of smart controllers, ZigBee/DALI protocols, and multi-functional sensors is redefining canopy spaces. Industrial lights automatically dim to 20% brightness when no motion is detected, boosting energy savings by an additional 30%. Intelligent under-canopy agricultural light systems adjust PPFD outputs according to real-time greenhouse light sensors.
Thermal management remains the core engineering limit of high-bay canopy lights. Leading suppliers employ robust isolation drivers (MeanWell, Inventronics) capable of surviving input surges up to 6kV/10kV. Passive cooling design uses custom-formulated die-cast aluminum alloys with micro-fins to accelerate heat dissipation, keeping junction temperatures below 75°C.
With high infrastructure costs in off-grid locations, combining LED canopy lighting with dedicated solar PV generation and localized battery storage systems has emerged as a premium solution for transit parks, remote warehouses, and ecological parks. In-house cutting, pressing, and welding of solar components enable us to optimize panel efficiency specifically for these demands.
A trusted global manufacturer providing state-of-the-art OEM/ODM services since 2010.
Guangdong Habel Lighting Co., Ltd. was established in 2010. We are a professional manufacturer and exporter specializing in the design, development, and production of LED indoor lighting products and LED outdoor lighting solutions. Over the years, we have built a strong reputation in the lighting industry through continuous innovation, reliable quality, and customer-oriented service.
We are equipped with a powerful R&D team that continuously develops new products every year, ensuring our customers always have access to the latest advancements in lighting technology. By staying at the forefront of LED innovation, we are able to deliver energy-efficient, durable, and high-performance lighting solutions for a wide range of applications.
With extensive industry experience and strong technical know-how, Guangdong Habel Lighting has successfully maintained its competitive advantage in the global LED lighting market.
We are committed to building an international lighting brand and actively provide OEM and ODM services to partners worldwide. Our mission is to deliver outstanding lighting solutions that help customers achieve their goals in energy efficiency, sustainability, and cost-effectiveness. We believe in creating long-term partnerships and working together to illuminate a greener and brighter future.
A visual step-by-step display of our manufacturing floor, testing laboratory, and quality check systems.
Get professional clarification on selection parameters, installation requirements, and technology choice.
Explore specialized industrial, agricultural, and flexible architectural lighting options.
