TUV Approved 80w 100w 120w 150w Gas Station LED Canopy Light Recessed Canopy Light

Product Description

Products Description

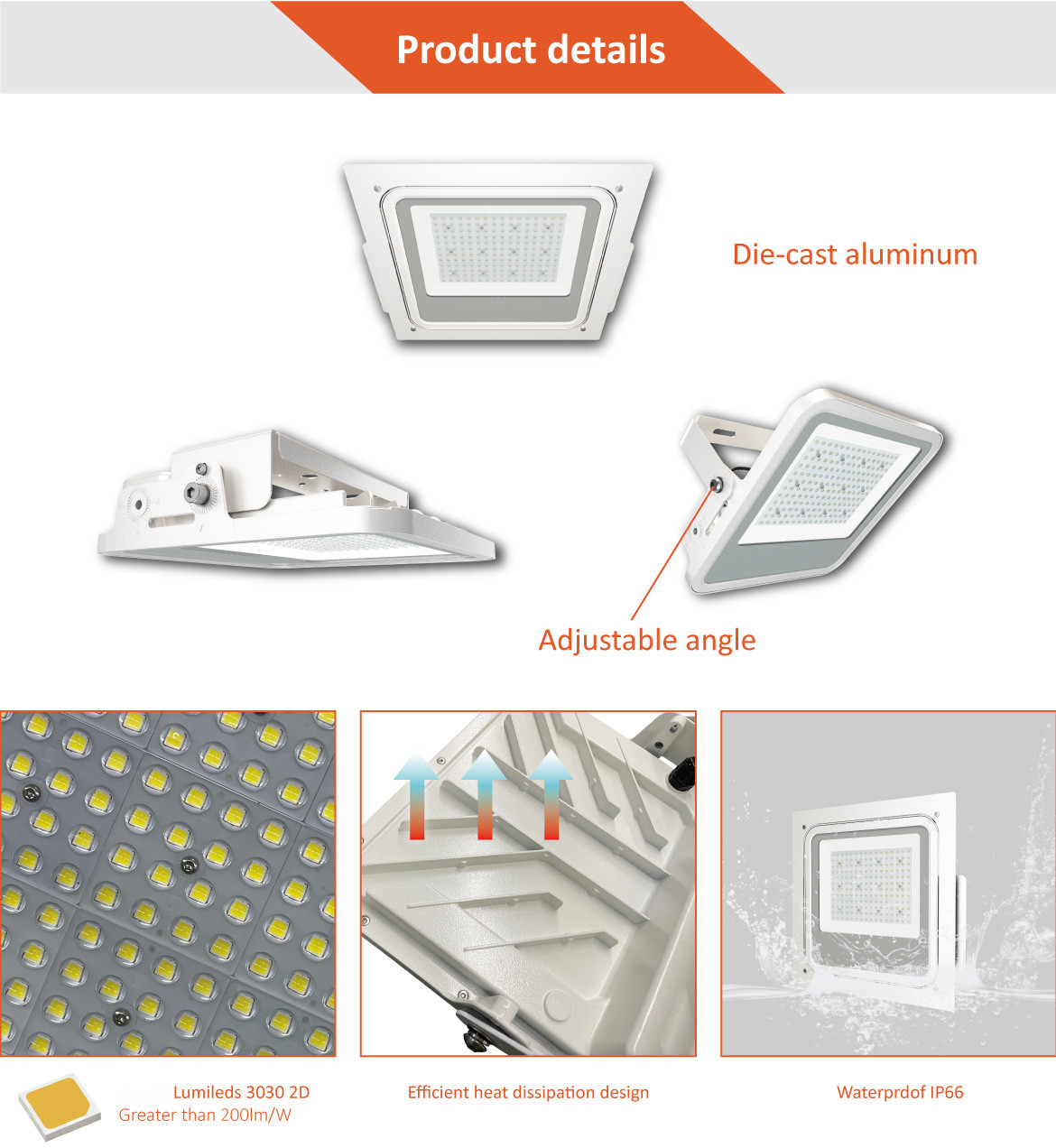

Product View 1

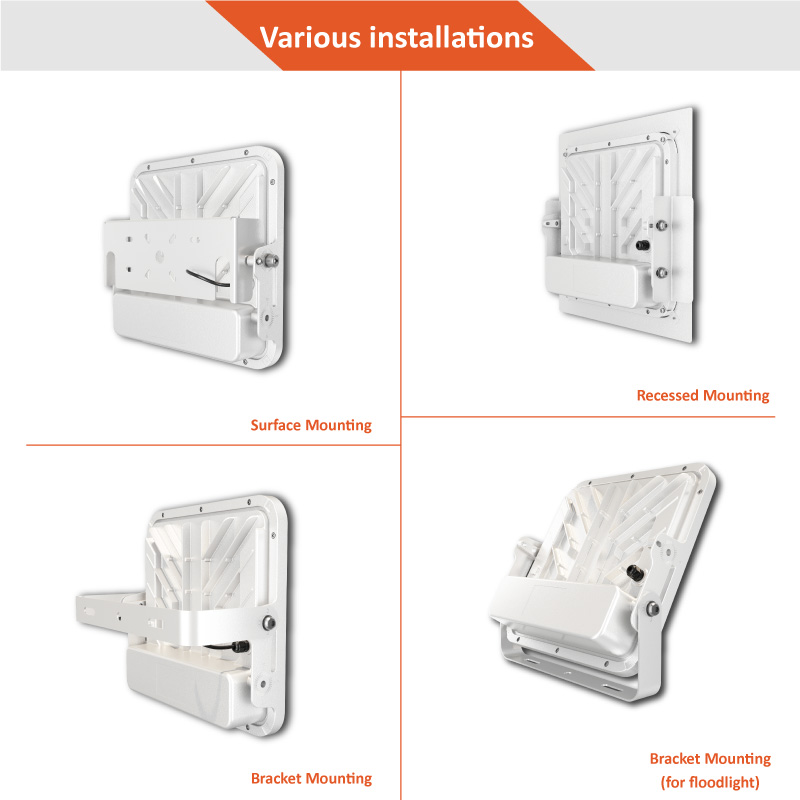

Product View 2

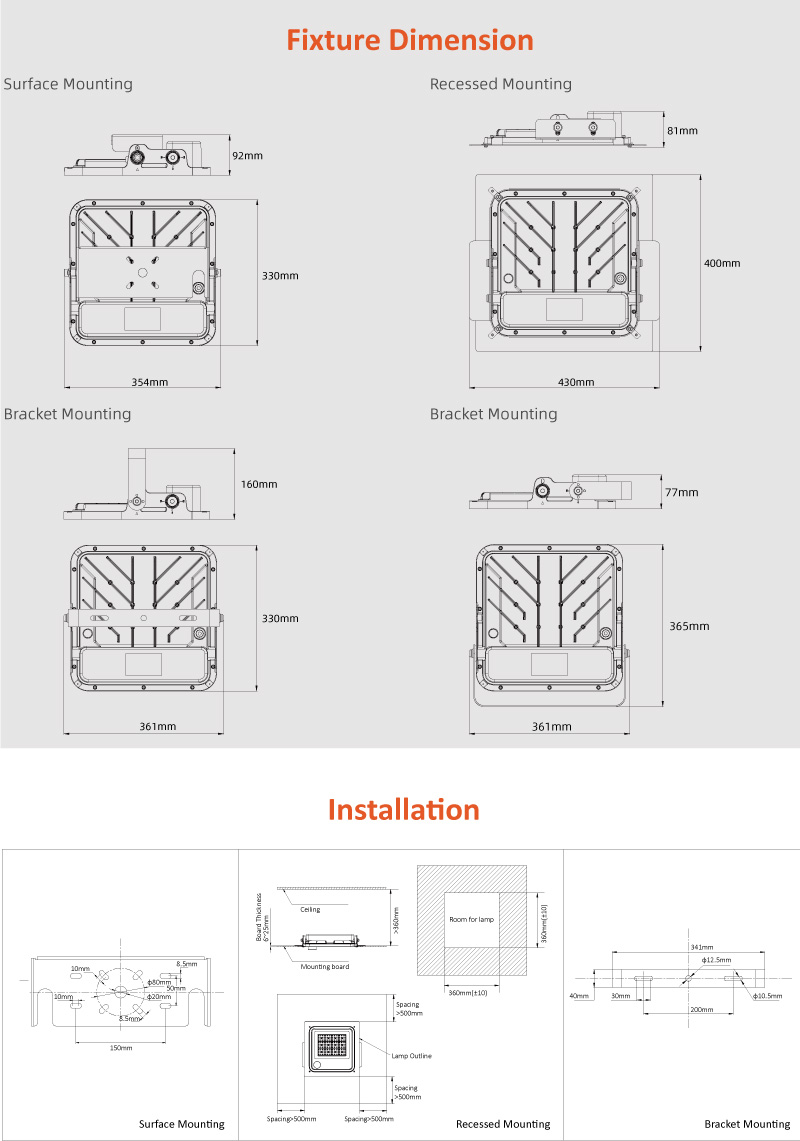

Product Details 1

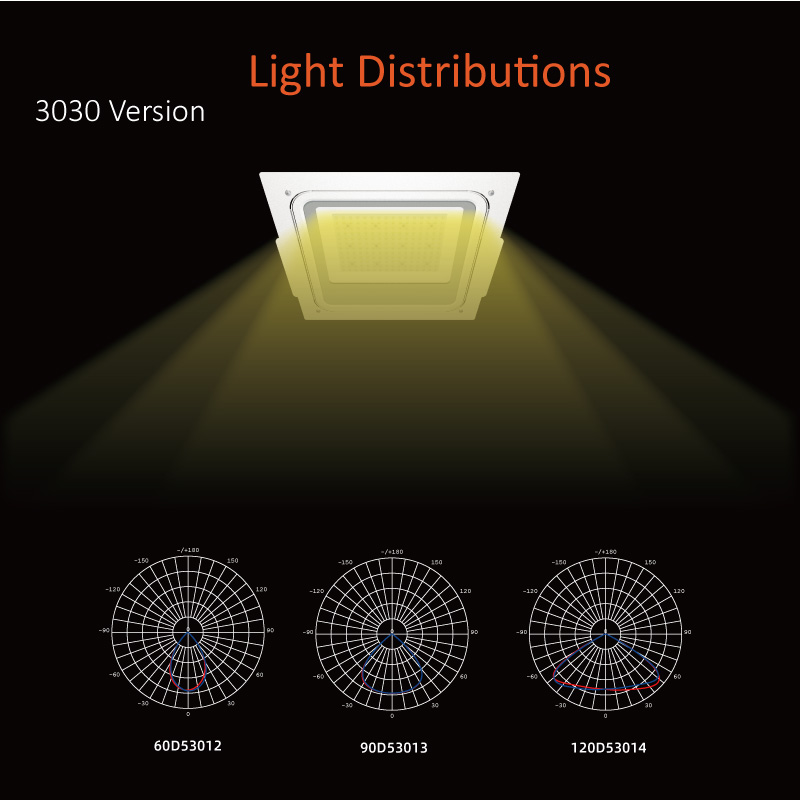

Product Details 2
Electrical Data Specifications
Electrical Parameter Reference
Model No ZGSM-GS04-80 ZGSM-GS04-100 ZGSM-GS04-120 ZGSM-GS04-150
Nominal Wattage 80W 100W 120W 150W
Efficiency (±5%) 165 lm/w 160 lm/w 160 lm/w 155 lm/w
Lumen (±5%) 13200 lm 16000 lm 19200 lm 23250 lm
Nominal Voltage AC 100-240V / 277V | 50/60Hz
LED Type Lumileds
Driver Inventronics (Default) / Other brands on request
Power Factor (PF) >0.95
THD <15
SPD 10KV (Built-in Driver) / Extra 10KV SPD (Available on request)
Optics 60°, 90° or 120°
Color Consistency <5 SDCM (Standard Deviation of Color Matching)
CRI Ra>70 (Default) / Ra>80
CCT 3000K, 4000K, 5000K, 5700K
General Data Specifications
Structural & Environmental Parameter Reference
Body Material High pressure die-cast aluminum
Housing Color White
Cover Material Tempered glass
Lens Material UV-resistant Polycarbonate
Working Environment -40°C ~ +50°C, 10%~90%RH
Lifespan L70 at 25 °C >100,000 h
Mounting Type Surface mounting / Recessed mounting / Bracket mounting
Mounting Location Wall / Ceiling
Dimmable Options 1-10V Dimming (Default) / Timer Dimming
Protection Class Class I (Default) / Class II
Standards & Certs CE, RoHS, CB, LM79, LM80, TM-21, ATEX, IP66, IK10
Available on Request Motion sensor, NTC, OLC, DALI Dimming
Manufacturing & Quality Control

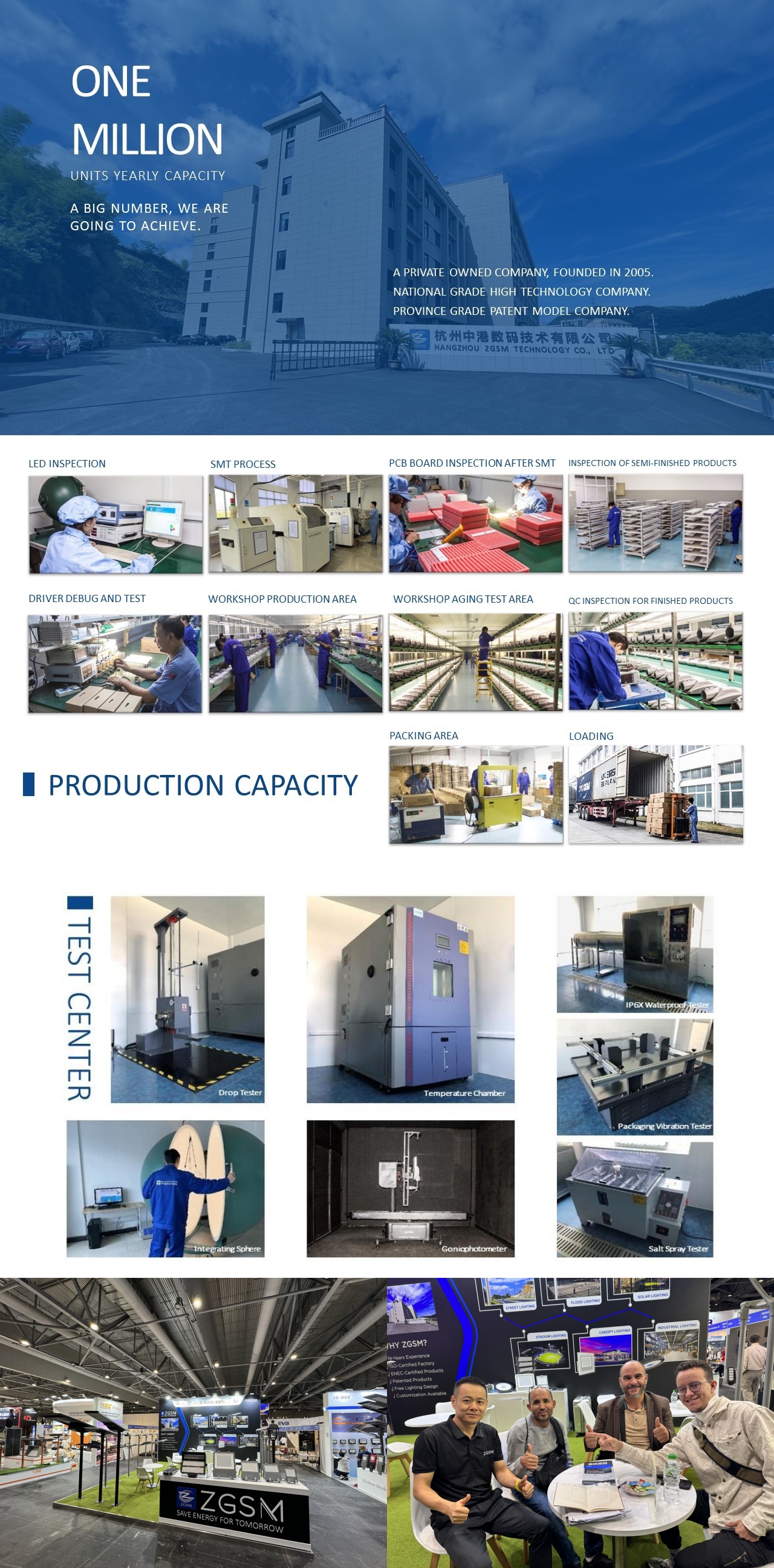

Manufacturing Plant
Frequently Asked Questions
Q1 Can I have a sample order for LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2 What is the lead time for production?
Samples are prepared within 3 days, while large volume orders require approximately 1-2 weeks.
Q3 Do you have any MOQ limits for LED light orders?
We maintain a low MOQ. A single unit (1pc) is available for sample inspection.
Q4 How do you ship the goods and how long does it take to arrive?
We typically ship shipments via DHL, UPS, FedEx, or TNT, which generally takes 3-5 days to deliver. Optional airline and sea freight shipping are also available.
Q5 What is the warranty period offered for these products?
We provide a comprehensive warranty of 3 to 7 years on all of our LED lighting products.
Q6 How do you handle product faults or defects under warranty?
Our manufacturing process adheres to a strict quality control system, limiting the defect rate to under 0.1%. Throughout the warranty period, we will repair or replace any verified defective products.
