One bracket design that seamlessly encompasses all arm functions below.
9 SKUs all-in-one street LED lamp setup to significantly reduce stock requirements.
| LN-SBLHL Series Specification Table | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | SBLHL60 | SBLHL80 | SBLHL100 | SBLHL120 | SBLHL150 | SBLHL200 | SBLHL250 | SBLHL300 |
| Watts | 60W | 80W | 100W | 120W | 150W | 200W | 250W | 300W |

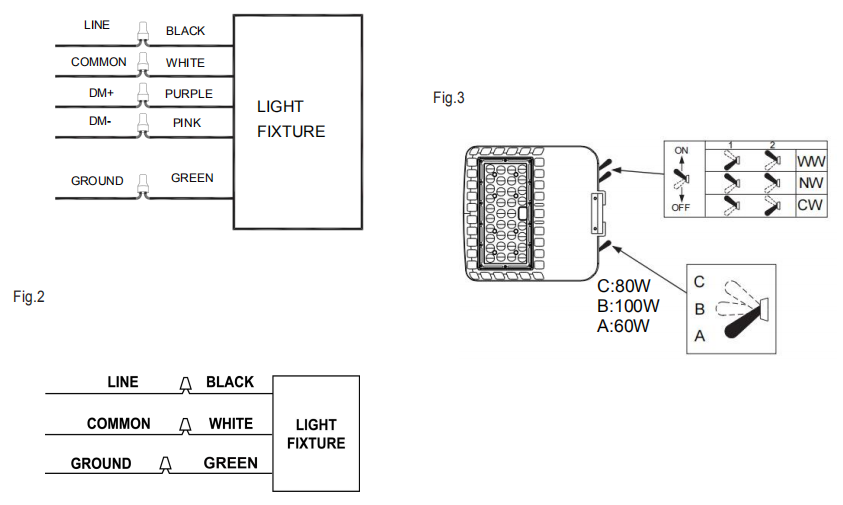

| 3 Power Selectable | Support | Support | Support | Support | Support | Support | Support | Support |

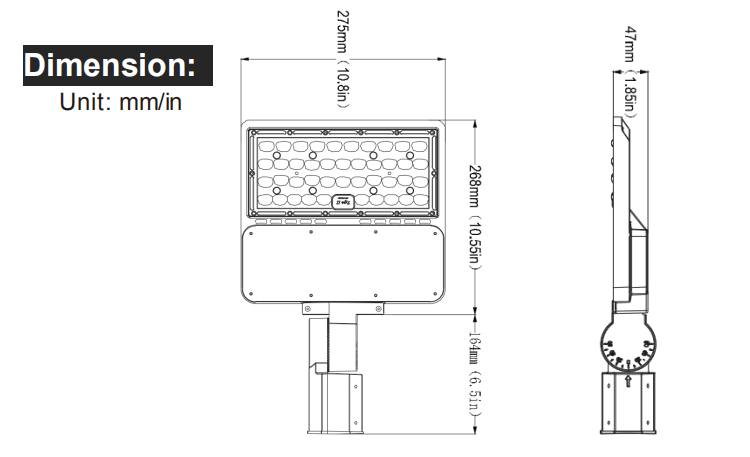

| Dimensions | L268 * W275 * H47 mm | L268 * W275 * H47 mm | L300 * W300 * H72 mm | L439 * W310 * H72 mm | ||||
| Net Weight | 2.9 kg | 3.1 kg | 4.2 kg | 6.1 kg | ||||
| Gross Weight | 3.7 kg | 3.9 kg | 4.9 kg | 6.9 kg | ||||
| Efficiency | 150 lm/W | 140 lm/W | 140 lm/W | 140 lm/W | ||||
| Total Lumens | 9,000 lm | 12,000 lm | 15,000 lm | 16,800 lm | 21,000 lm | 28,000 lm | 35,000 lm | 42,000 lm |
| PCS/CTN | 5 pcs | 1 pcs | 1 pcs | |||||
| CTN Size | 43 * 33 * 49 cm | 39 * 37 * 21 cm | 70 * 40 * 16 cm | |||||
| LED + Driver | Famous Brand + Lifud / Sosen / Meanwell / Factory Driver Option | |||||||
| Warranty | 7 Years Warranty | |||||||

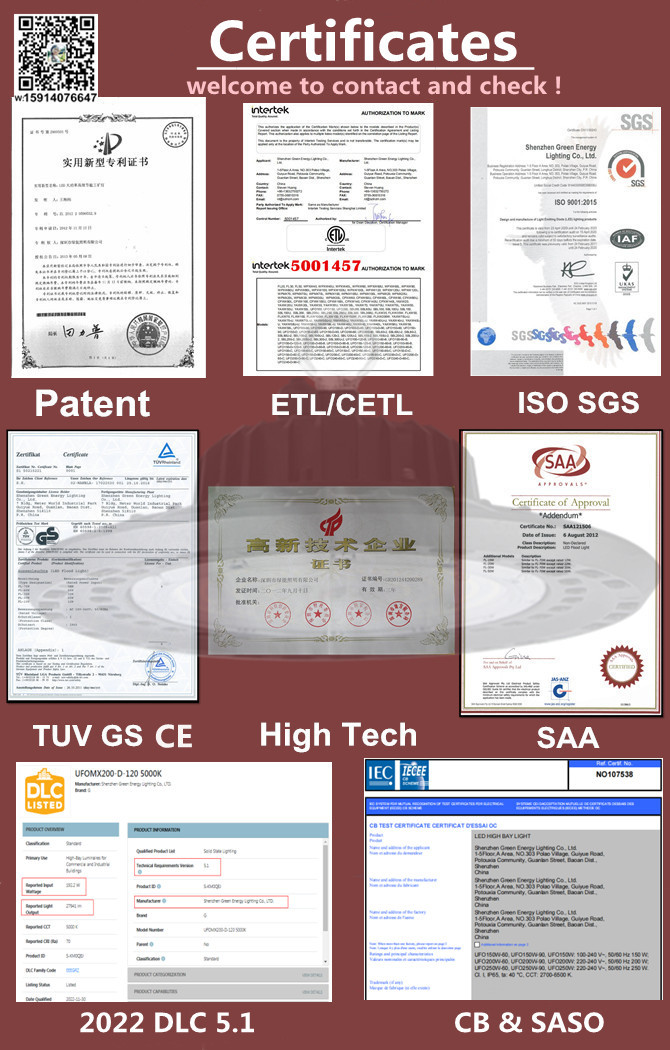

| Certificates | ETL / cETL (5001457), DLC 5.1, SAA, CE, RoHS | |||||||
| Surge Protection | 10KV Surge Protection; IK10 Mechanical Protection Degree | |||||||
| Input Voltage | 85-277V AC | |||||||
| Photocell Sensor | Patented photocell sensor + shorting cap (standard or without sensor options available) | |||||||
| Dimmable | 0-10V Dimmable / Non-dimmable option | |||||||
| Beam Angle | Type III (80*150 degree) | |||||||

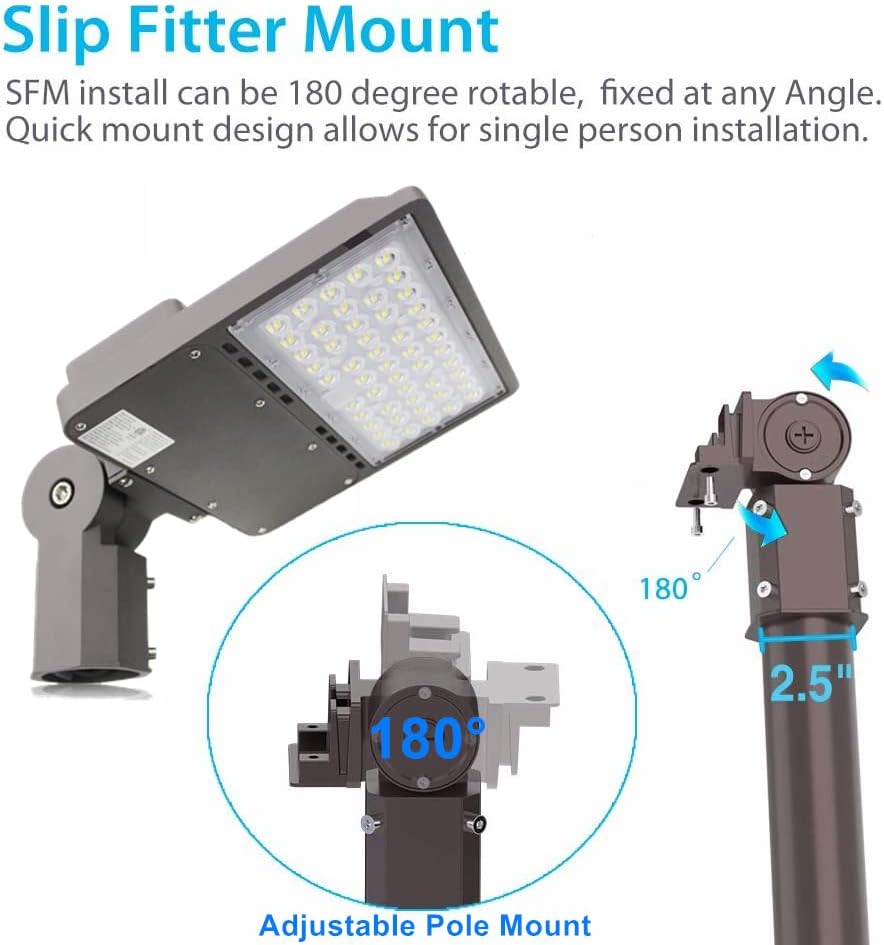

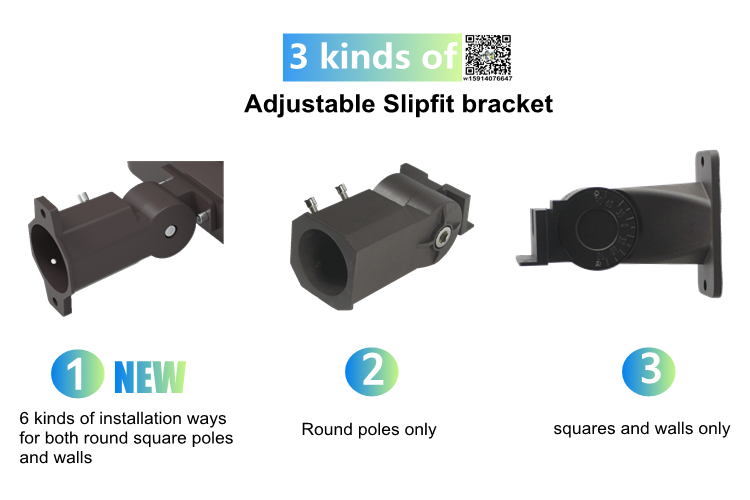

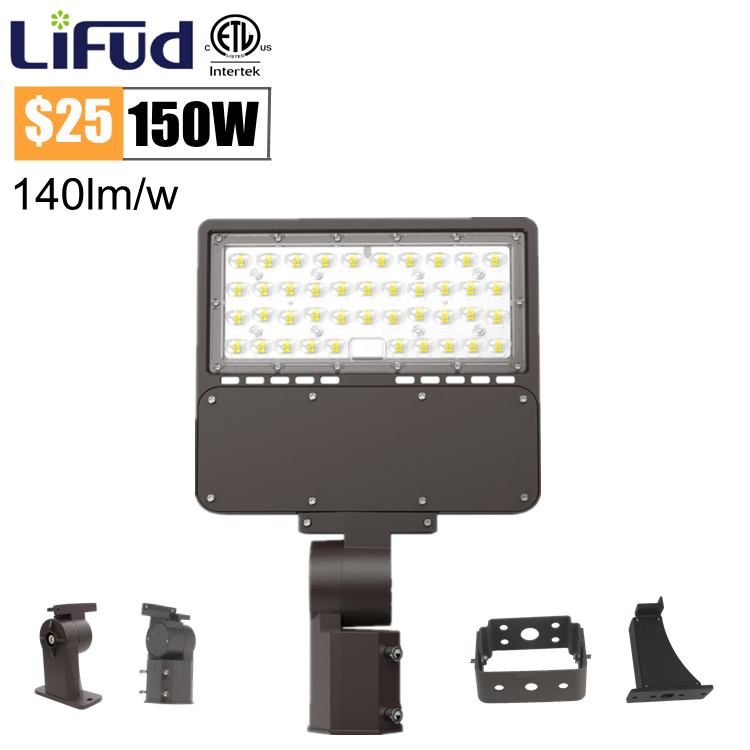

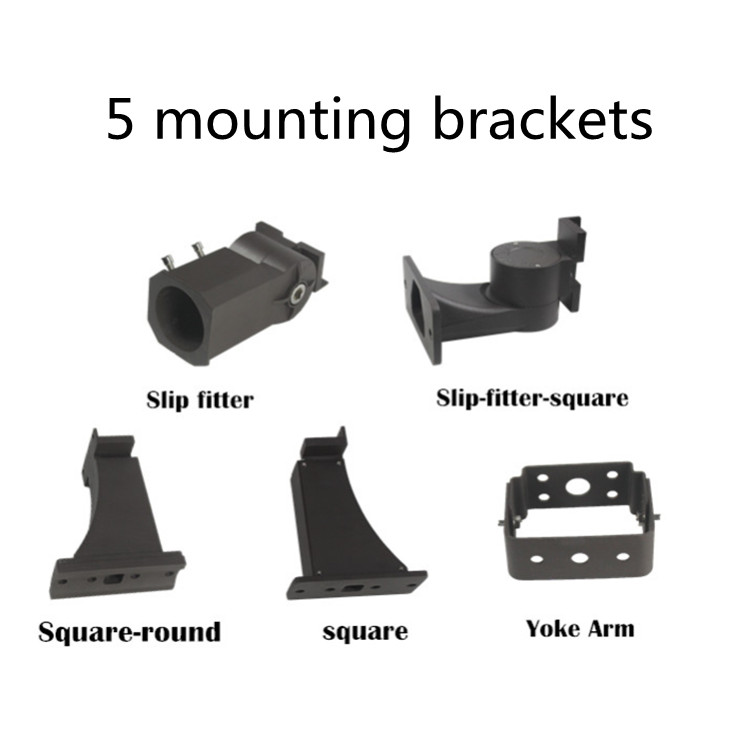

| Arm Options | Universal Slip Fitter, Square Arm, Round Arm, Square/Round Integrated Arm, Yoke/Trunnion U-Arm | |||||||
| CRI | RA >75 / 80 / 90 configurable | |||||||
| Working Temp. | -40℃ to 50℃ | |||||||
| IP Rating | IP66 Waterproof | |||||||

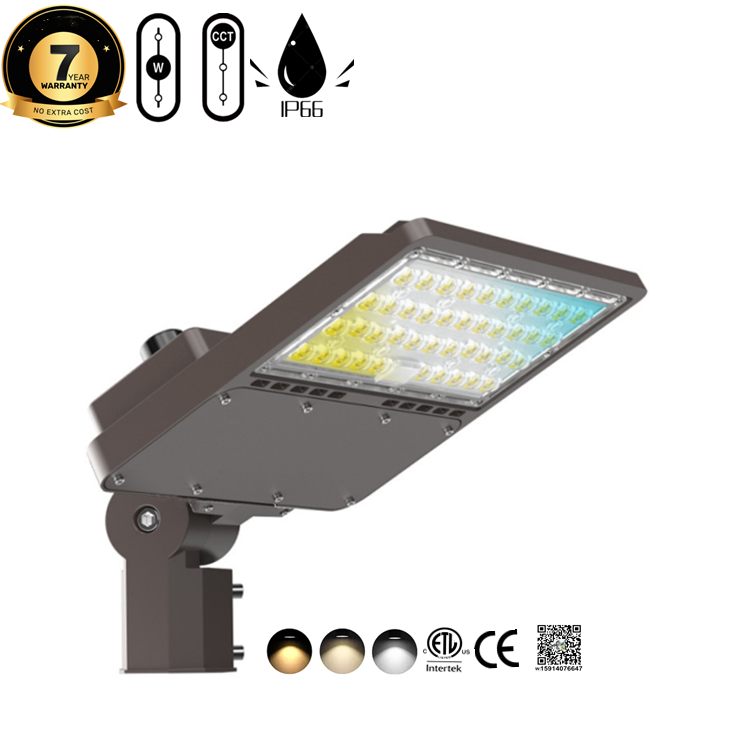

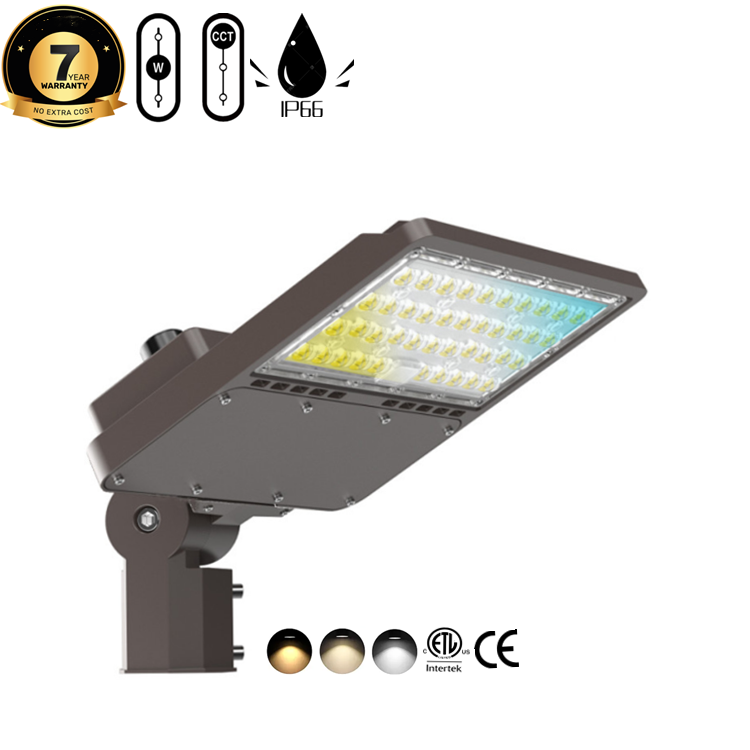

| CCT Options | 3000K / 4000K / 5000K / 5700K / 6500K or 3-Color Switchable | |||||||
| Housing Color | Brown (Black, Gray or custom color options available) | |||||||
| Selling Points | Certified design + Breathing Valve + Patented Photocell + Freight-Saving Compact Design + Top Components | |||||||
| Factory Scale | 9000+ sqm Production Base, 280+ Workers, 20 Years Industry Experience | |||||||

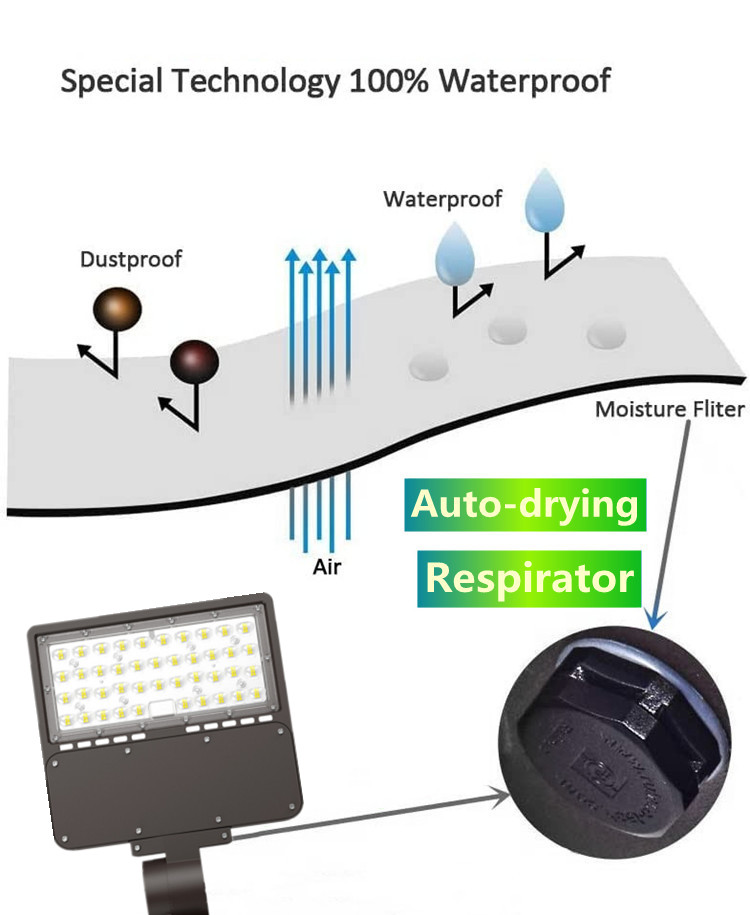

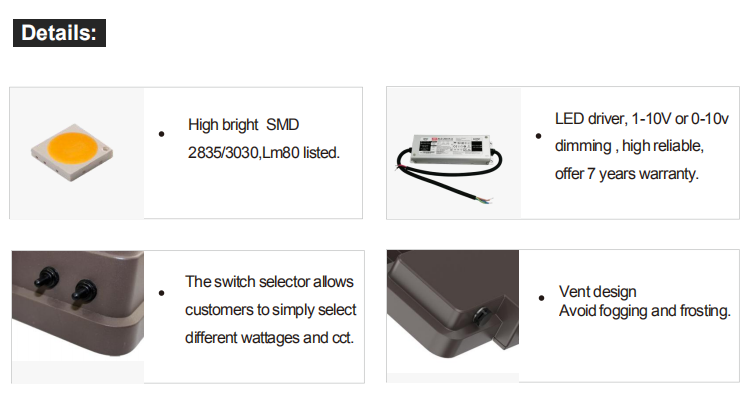

Allows internal moisture to escape while blocking external moisture, guaranteeing long-term IP66 waterproof performance.

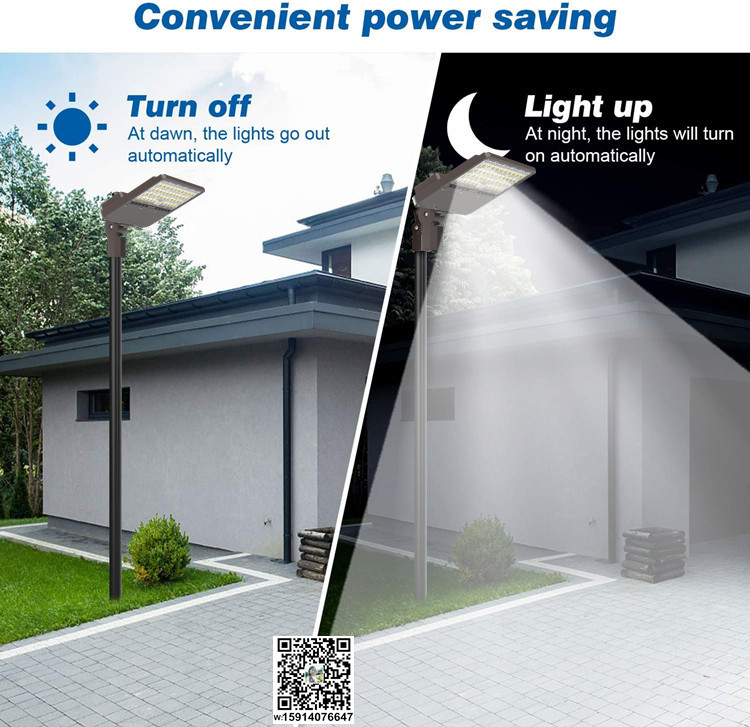

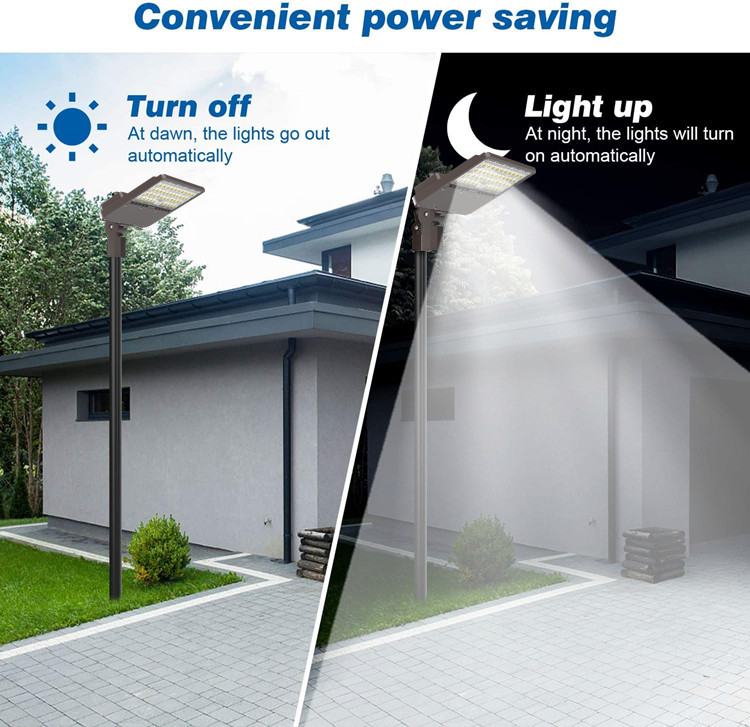

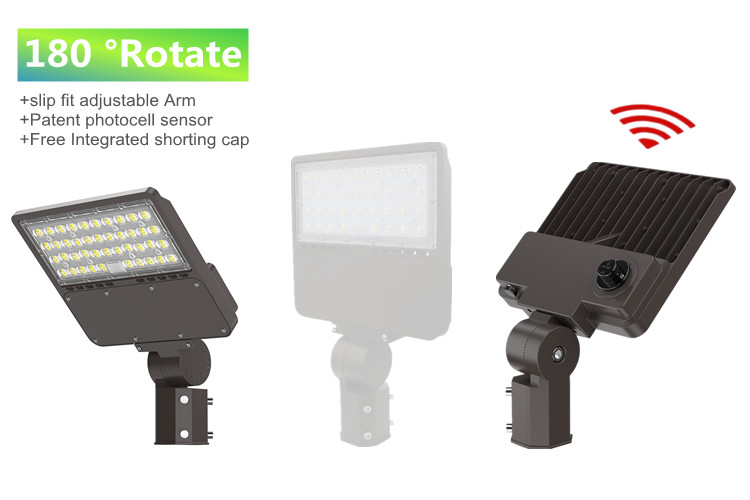

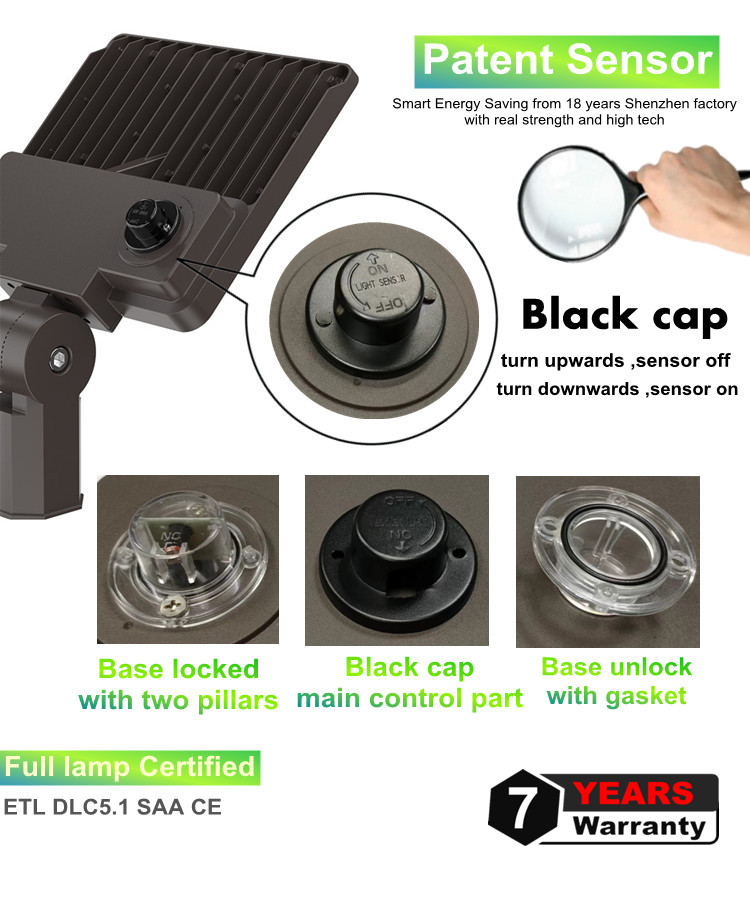

Automatically turns ON at dusk and OFF at dawn. The patented integrated sensor design ensures compatibility with photocell configurations without risking the loss of the shorting cap.

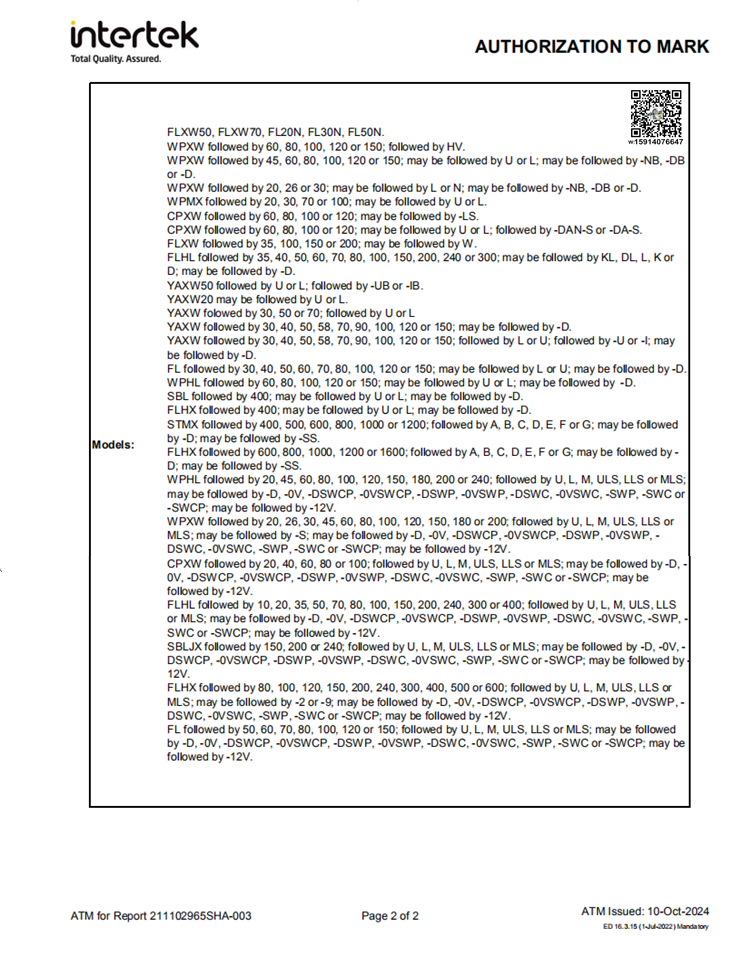

Fully compliant with international standards, delivering certified reliability across diverse electrical environments.
All 100-277V and 100-347V single color or 3 CCT / 3 Power switchable models carry full ETL, SAA, and CE Certifications.
Established in 2004 with 20 years in the LED lighting field, the manufacturing base operates across 9,000 square meters over 5 functional floors with more than 280 skilled workers. The facility focuses solely on high-quality, high-power outdoor LED fixtures with competitive direct-from-factory pricing. All products carry premium components and certificates (TUV, GS, CE, ETL, cETL, SAA) alongside a 7-year replacement warranty.
We support flexible shipping terms and payment options:
Payments: PayPal, TT (Wire Transfer), LC (Letter of Credit), Trade Assurance orders.
Trade Terms: EXW, FOB, CFR, CIF, DDP.
Lead Times: 3-5 days for samples, 2-3 weeks for bulk manufacturing orders.

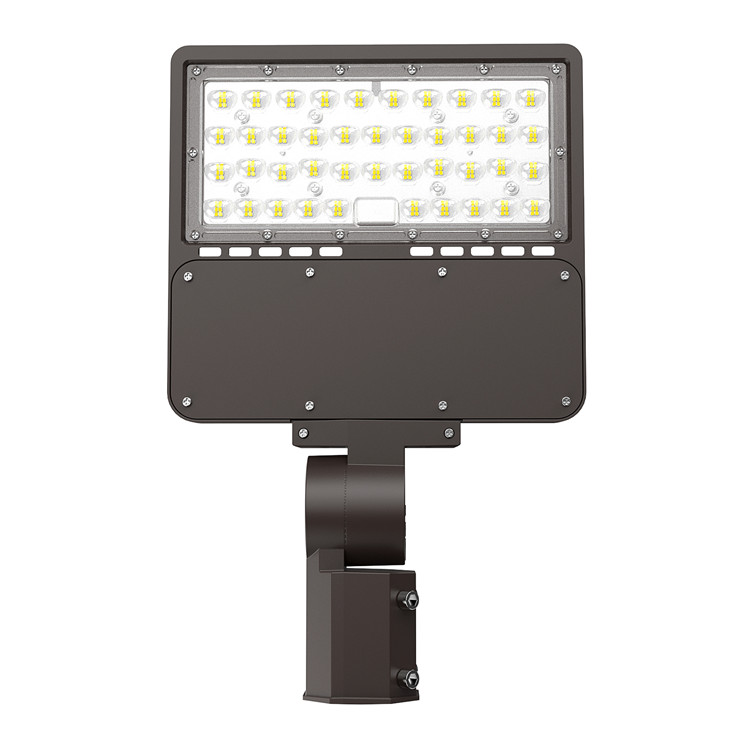

High performance LED streetlights featuring premium drivers, robust aluminum housings, slipfitter configurations, and ETL safety certifications.
