Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

1 / 5

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Send Inquiry

Product Description

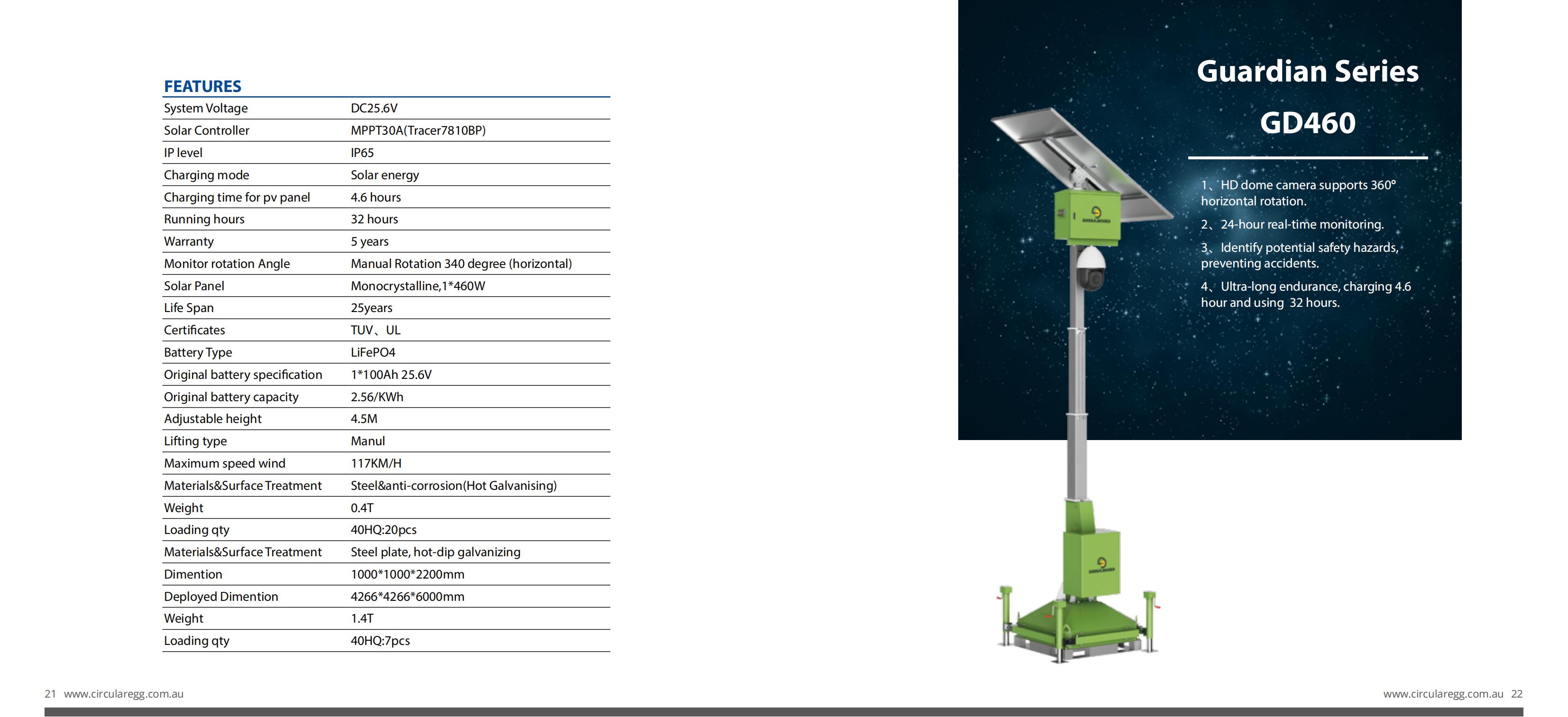

Solar Lighting Camera Illumination Tower CCTV System Features

Solar Panel Unit

1*230W Mono Solar Panel with adjustable tilt (0°-90°) and 340° rotation angle. Powered by MPPT 30A PV controller.

LiFePO4 Battery

1*100Ah 25.6V high-capacity LiFePO4 battery pack providing 2.56 KWh system voltage for reliable power storage.

Heavy Duty Mast

Hot-galvanized anti-corrosion steel mast (4.5M) with manual winch lifting, windproof rated up to 117 KM/H.

Charging & Runtime

Fully charged within 4.6 hours under direct PV sunlight, delivering an exceptional run time of up to 32 hours.

System Dimensions

Standard size of 915*915*2410mm. Deployable up to 2090*2090*5140mm. Total weight of 800 KGS.

Container Loading Qty

Supports up to 20 pcs for standard 40HQ container shipping loads.

Technical Specifications

System Specifications
Output Voltage (V)	110 / 240 V
Frequency	50 / 60 HZ
Battery Capacity	19 KWH / 28KWH / 43 KWH
Solar Panel Type	Monocrystalline Silicon
Solar Panel Wattage	4550 W / 6550W / 8*550 W
PV Controller	MPPT 60A, 95% efficiency / MPPT 80A, 95% efficiency
Battery Type	Lead-acid
Battery Pack	8200 AH, DC 12V / 12200 AH, DC 12 V
Communication Interface	RS-485
Output Port	110A AC outlet + 24A AC outlets + 1*5V USB
Axle Qty	Single
Tyre and Rim	15 Inch
Support Leg	4pcs, Manual

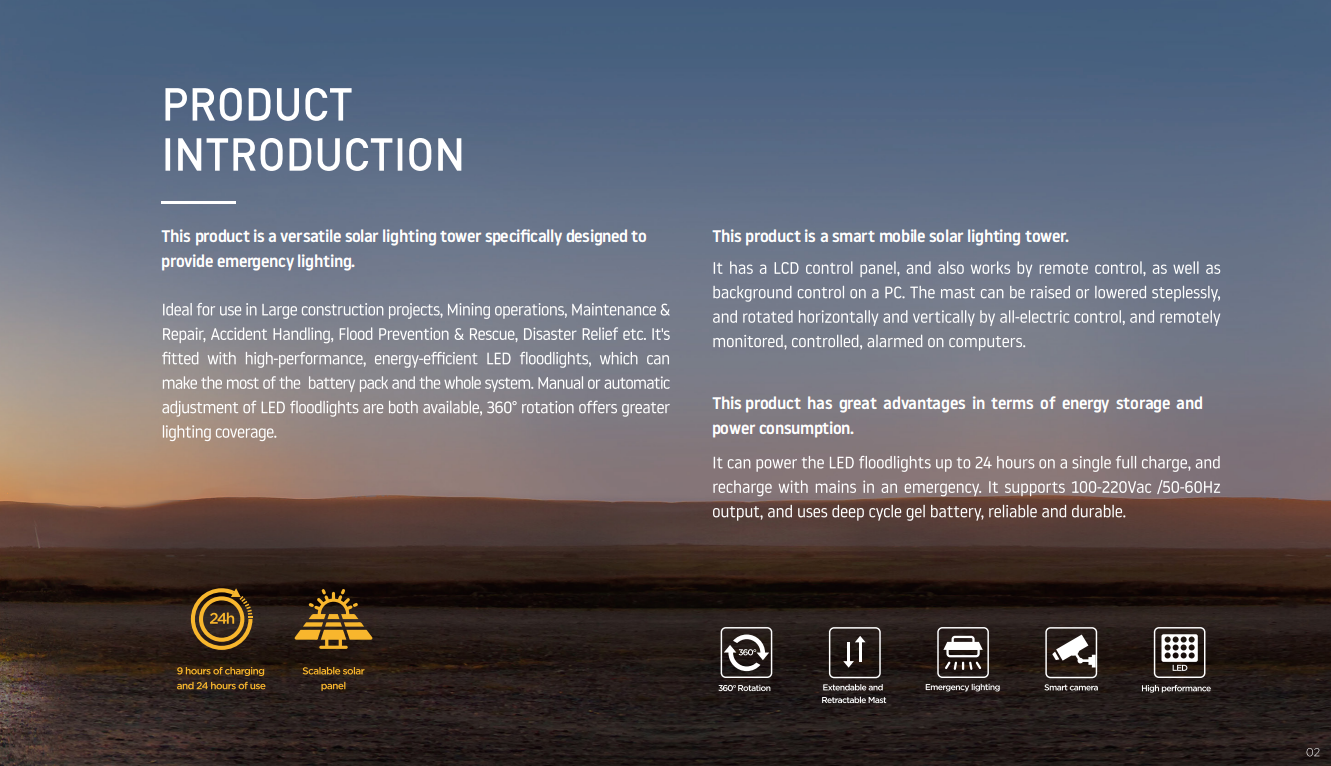

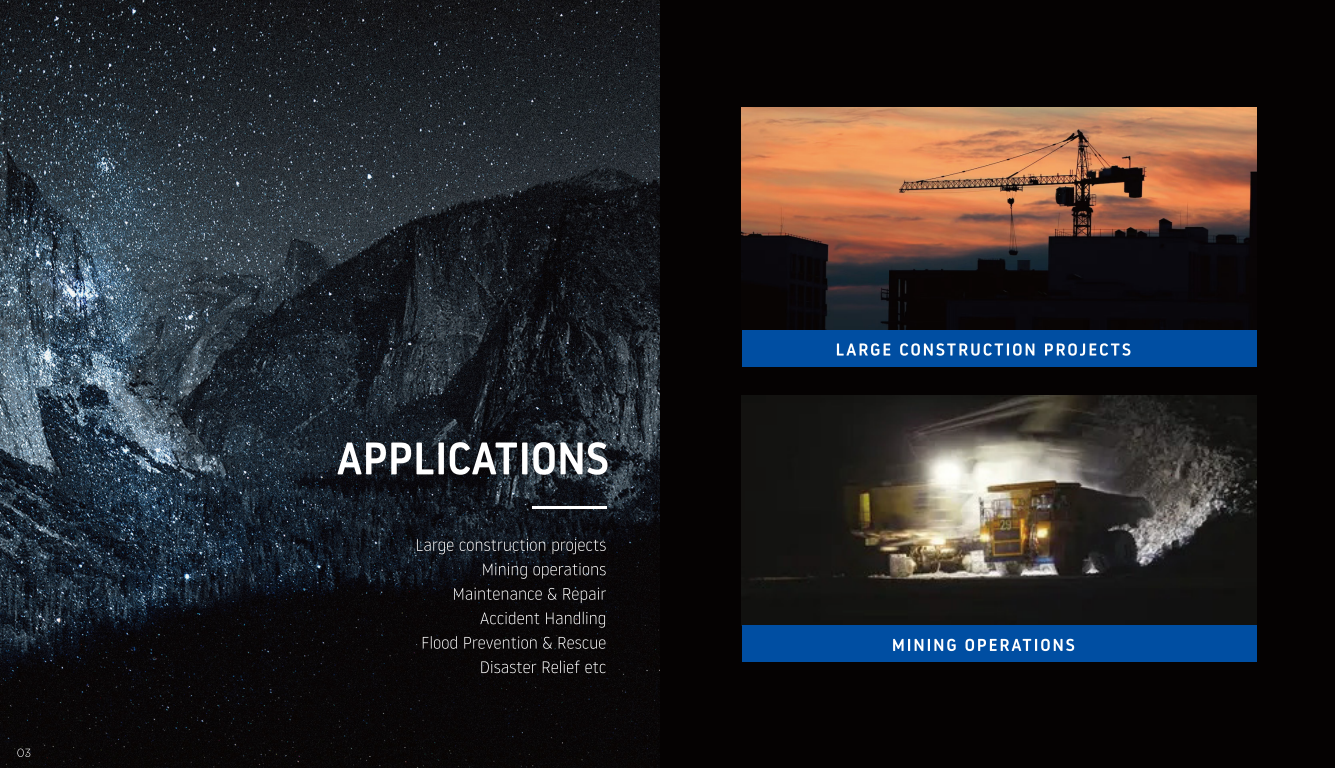

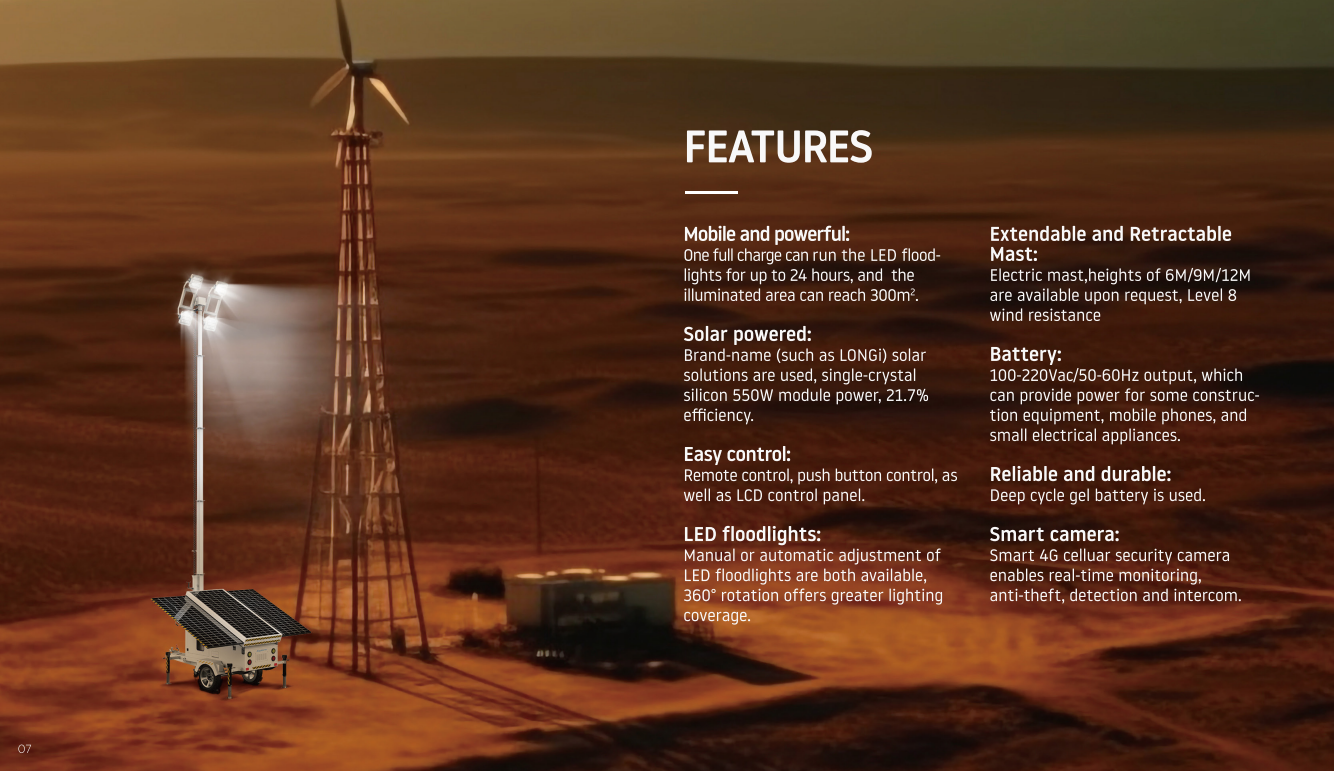

Product Design Drawings

Frequently Asked Questions

What type of battery does the system use, and what is its lifespan?

The standard setup uses a LiFePO4 battery (1*100Ah, 25.6V) offering up to 32 hours of continuous run time. Alternatively, optional Lead-acid battery packs in 19 KWH, 28KWH, or 43 KWH capacities are also available to suit specific site project needs.

How wind-resistant is the adjustable mast system?

The mast is manufactured from hot-galvanized anti-corrosion steel and extends up to 4.5 meters using a manual winch lifting system. It is designed to be highly stable and capable of resisting wind speeds of up to 117 KM/H.

How long does the solar panel take to fully charge?

Under direct sunlight conditions, the high-efficiency monocrystalline solar panels can fully charge the system's battery in approximately 4.6 hours using the integrated high-efficiency MPPT PV controller.

What output power interfaces are available?

The system features versatile power options including 110/240 V AC at 50/60 Hz. The connection panel provides 1*10A AC outlet, 2*4A AC outlets, and a 1*5V USB port for auxiliary device connectivity.

How flexible are the adjustments for the solar panel and tower mast?

The solar panel tilt angle is fully adjustable from 0° to 90°, and features a rotation angle of up to 340° to optimize sunlight exposure. The tower itself goes from a compact 915*915*2410mm footprint up to a 2090*2090*5140mm footprint when fully deployed.
