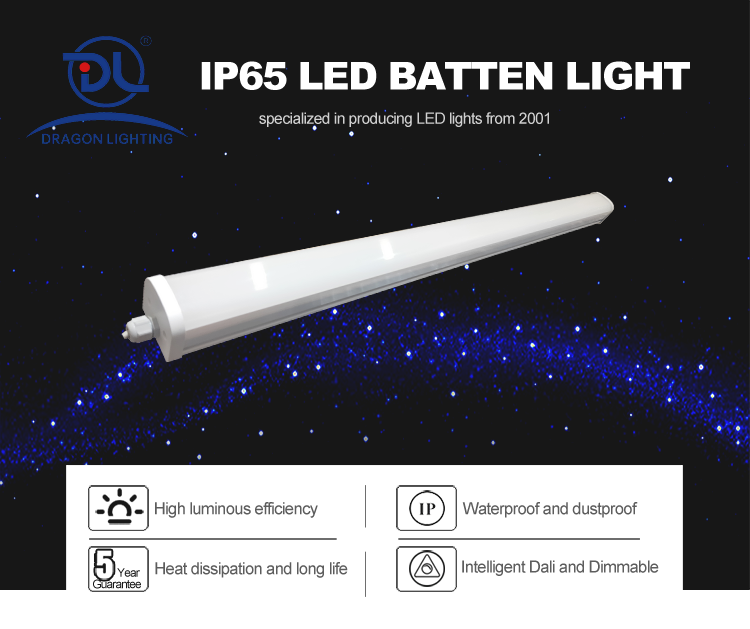

Led Explosion-proof Waterproof Dust Ip65 Led Batten Light Tri-proof Light
Product Description
Technical Data
Model Specifications
Performance Parameters
Model: DLGZ-50-IP65 Fixture Dimension: 1180x70x60 Output Power: 50W Luminous Flux: 5000lm Light Efficiency: 100lm/W LED: LED SMD 2835 Driver: Chinese LED driver
CRI: >80 CCT: 4000k-6500k Rated Input: 220-240V Beam Angle: 110° Certification: CE/RoHS Warranty: 50000 hours Dimmable or Dali driver is available on request
Housing for LED Batten light:High quality polycarbonate housing, waterproof, dustproof and anti-corrosion for 8-10 years under normal application.
Diffuser for LED Batten light:The light designed by the LED strip with Polycarbonate cover together, high efficiency and no glare, it will give novel visual effect and soft luminosity.
LED type for LED Batten light:It uses LED Epistar, Samsung, Hongli SMD 2835.
Electrical for LED Batten light:Lifud or Famous logo standard driver or Dali / Dimmable driver.
Mounting for LED Batten light:Surface/Suspended mounting, Track installation.
Main Applications
Supermarket / Hotel / Hospital
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
Save energy:Energy saving, saving 65% than the traditional lights at the same brightness.
Lower glare:It is with PC diffuser, it can effectively prevent and eliminate all kinds of glare, it is not easy for eyes to produce visual fatigue for long time.
Easy to be installed:The light is easy to be installed by screw or stainless steel on the ceiling.
Long life:It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Specifications
Model
Power (W)
LEDs Type
Luminous Flux (lm)
Efficiency (lm/w)
CRI
CCT
DLGZ-50-IP65
50
2835
5000
100
>80
4000K-6500K
Packing Details
Model
Dimension (L*W*H)(mm)
Packing Size (mm)
Qty/Ctn
DLGZ-50-IP65
1180x60x70
1250x180x95
2
Product Details

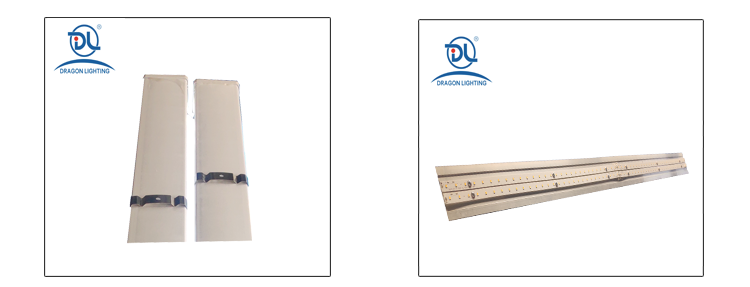

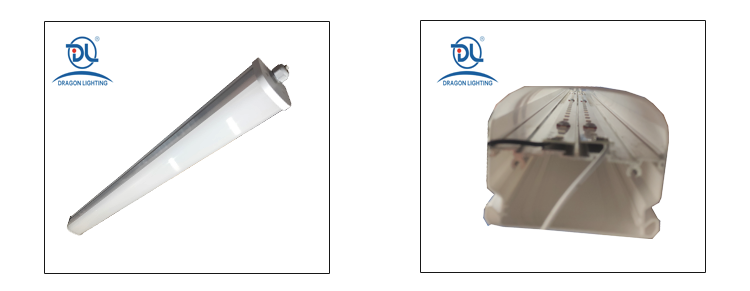

Makes the light no leakage, and the efficiency of the light is fully utilized without loss. The internal structure, the LED strips are fixed on the aluminium sheet and place on the middle of the light.
The light is easy to be installed by stainless steel wire or screw on the ceiling. It uses LED Epistar, Samsung, Hongli SMD 2835.
About Us
It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection. Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.
Certifications
Frequently Asked Questions
Q1: Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Q3: Do you have any MOQ limit for LED light order?
A: 1pc for sample testing is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to place an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
