160lm/w LED Flood Light/LED High Bay Light 100W 200W 300W 500W

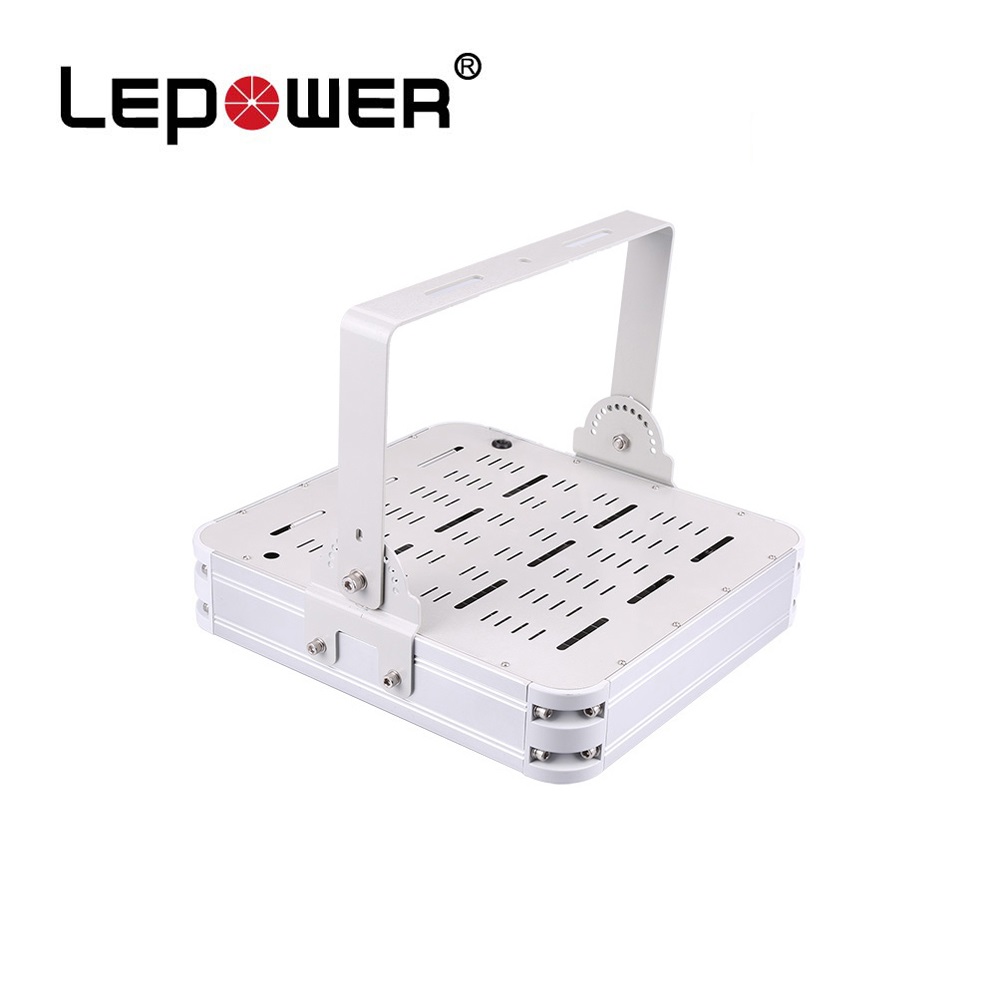

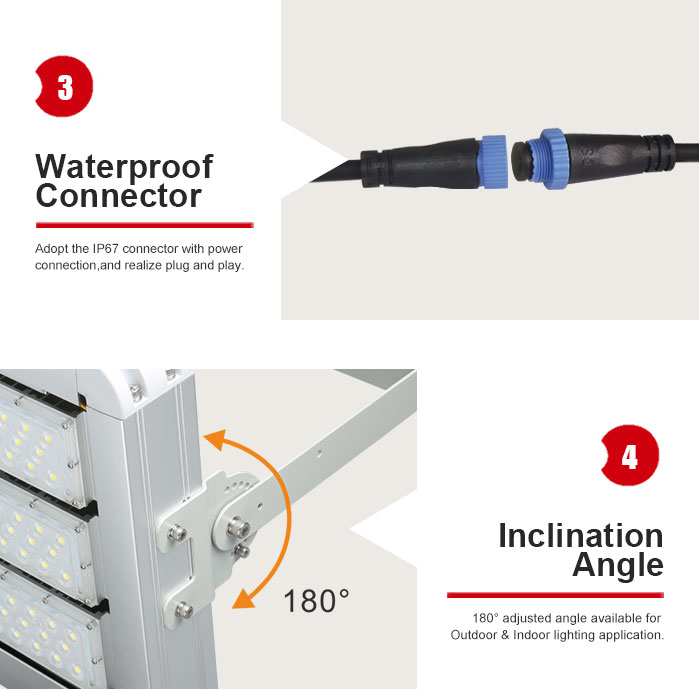

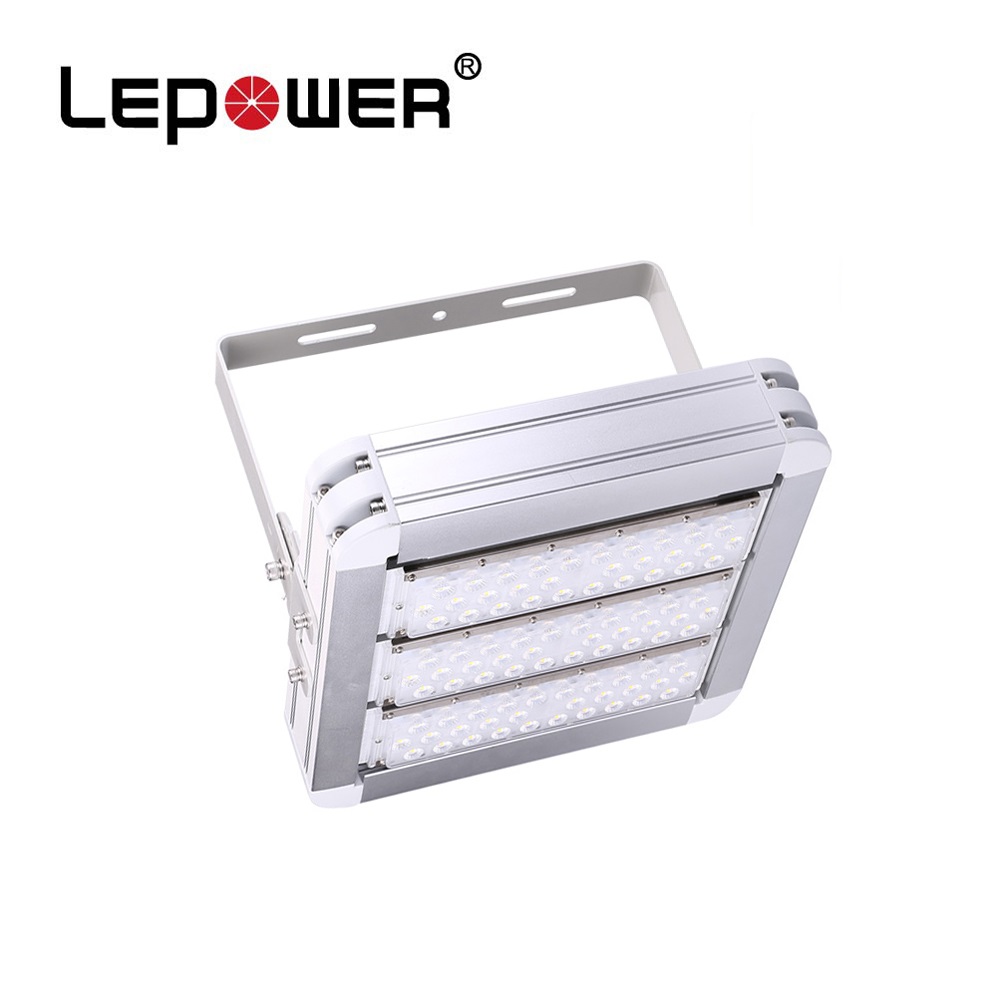

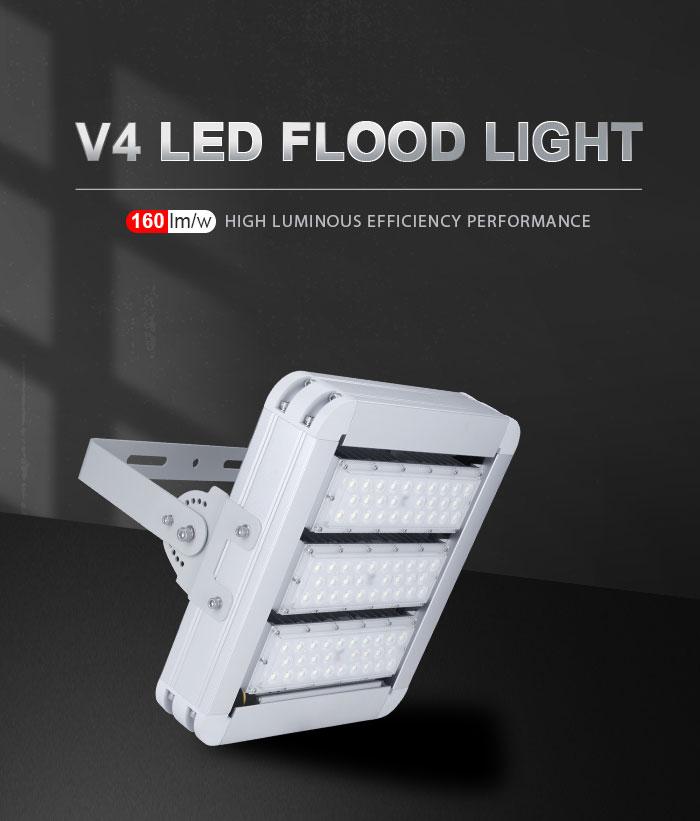

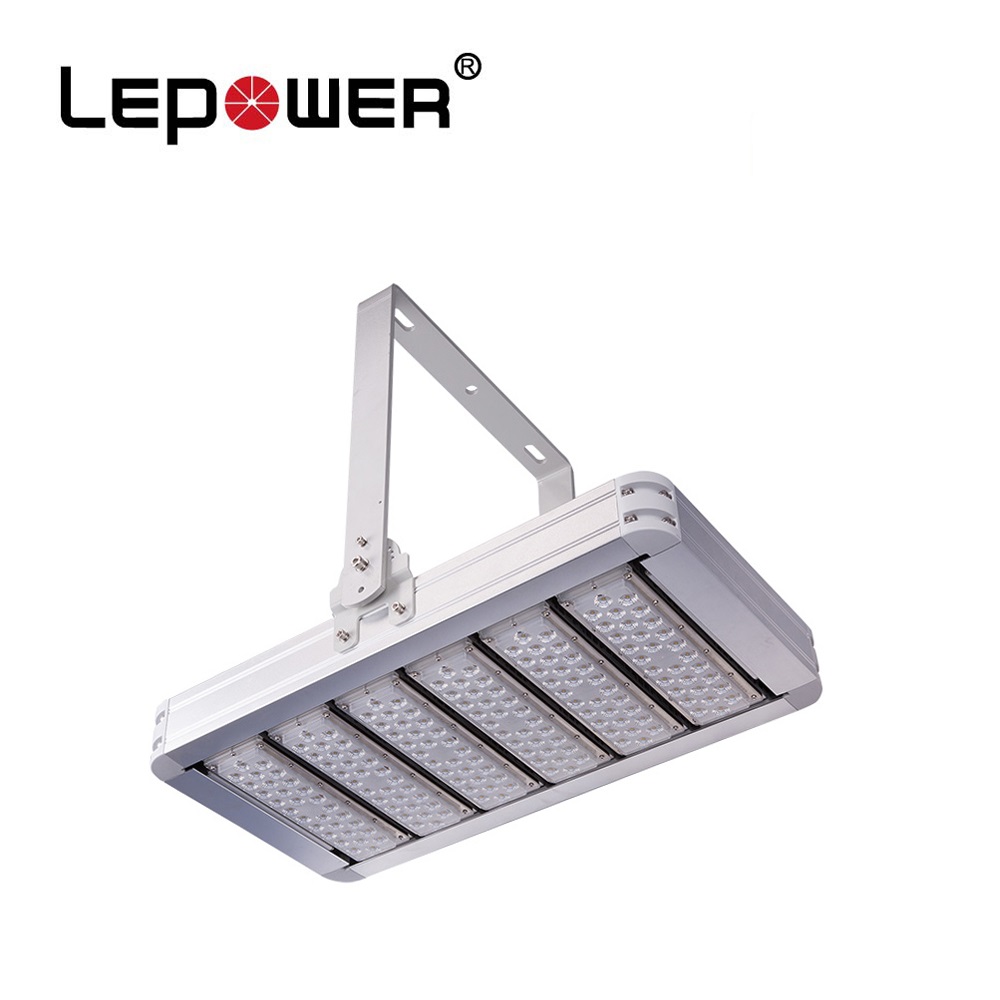

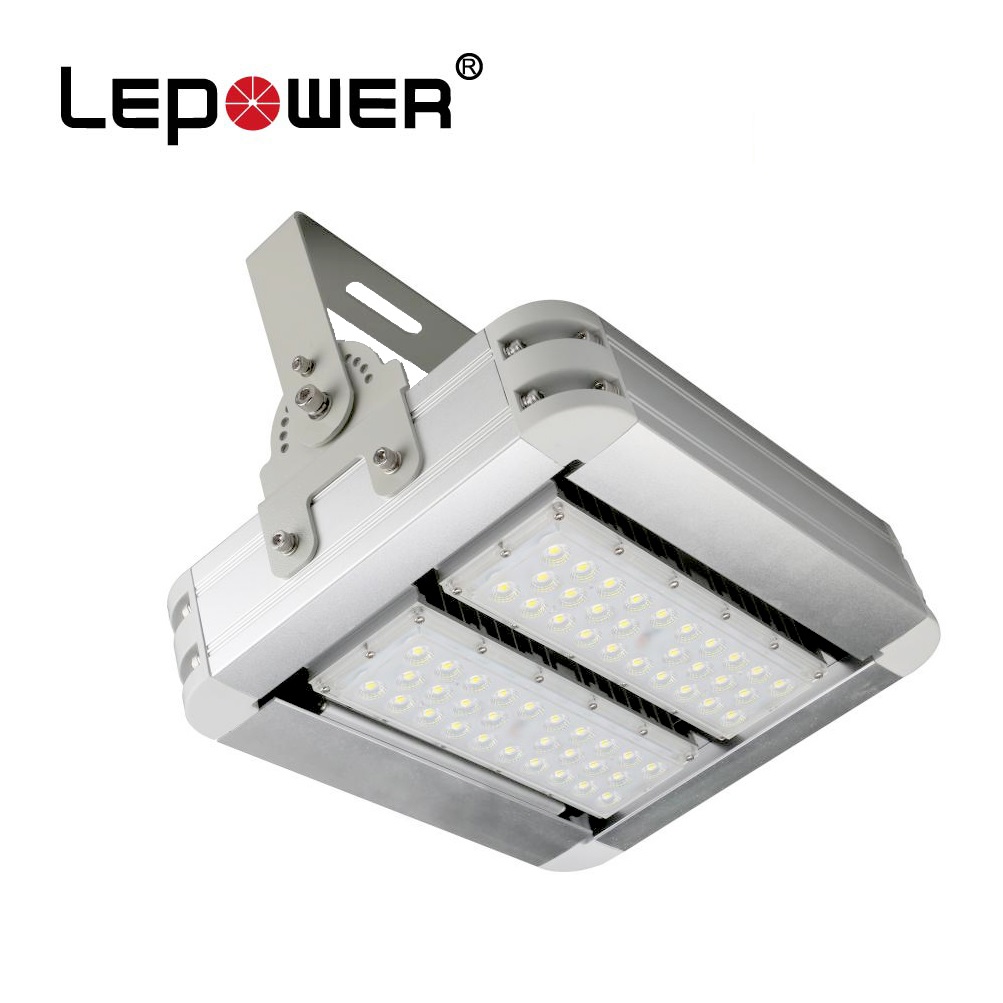

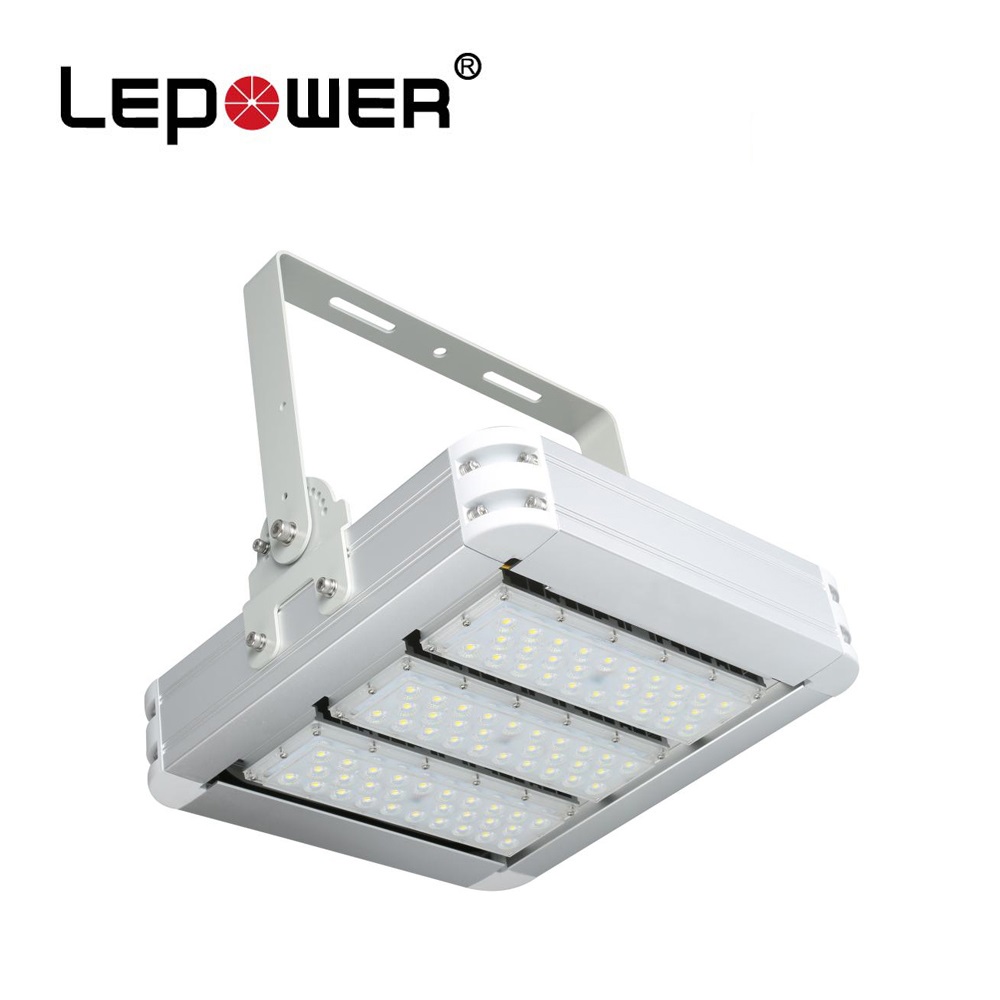

The detail pictures of led flood light/led high bay light 100w-1200w series.
| Technical Parameter |
Nominal Value |
| Model |
LY-HB0402 |
| Power |
100W |
| CCT |
3000K/4000K/5000K/6000K |
| Beam angle |
25° 40° 60° 90° 145x100° 150° |

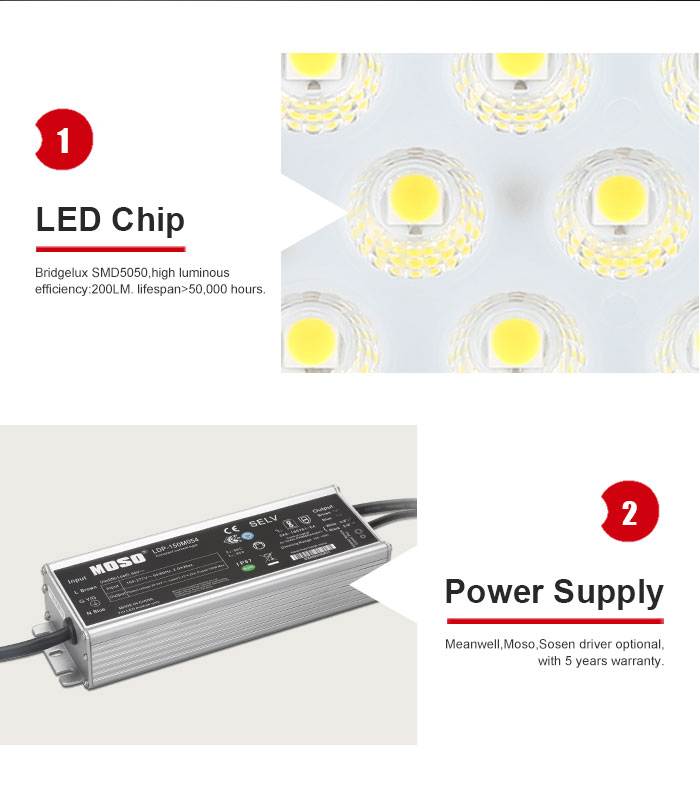

| Chip brand |
Bridgelux 5050 |
| Leds qty. |
56pcs |
| CRI |
>70 |
| Efficiency |
160Lm/W |
| Lumen |
>16000lm |
| IP Rate |
IP66 |
| Working voltage |
90-305V |
| Working temperature |
-40°C~50°C, 20%~90% RH |
| Storage temperature |
-40°C~85°C, 10%~90% RH |
| Power efficiency |
93% |
| PF |
>0.98 |
| Lifespan |
50000H |
| Housing material |
Aluminum alloy |
| Input Surge Protection |
6KV L-L, 10KV L-E |
| Light size |
282.4*340*144.2mm |
±5mm |
| Packing size |
360*410*225mm |
±5mm |
| Light N.W. |
4.9kg |
±0.1kg |

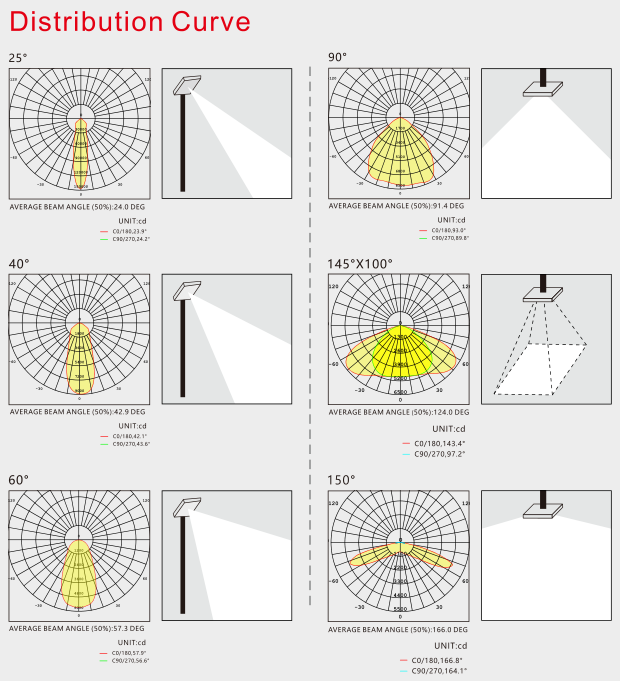

The beam angle of led flood light series
Why we achieve over 160lm/w for complete light?
- Adoption exclusive light source and ZAG Lens. Compared with similar products, the luminous efficiency can rise 8% and light transmittance up to 98%.
- LED chip reach 230lm/w.
- Great durable heat sink, ensure the junction temperature rise less than 10°C.
- LEDs which packaged by multi-chips feature high lumen output, stable performance, low light failure, and no dead lights.

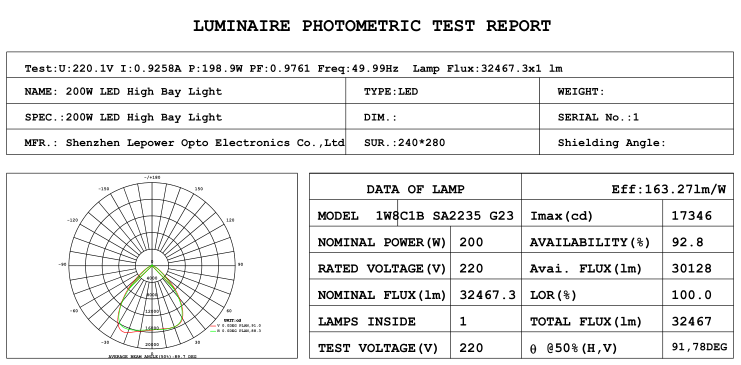

The test report of led high bay light/led flood light series (Lamp: 1200W Max)

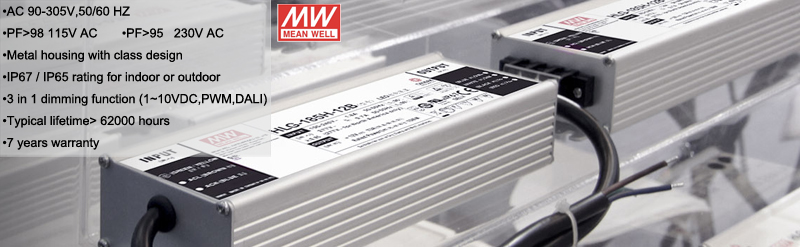

High efficiency led driver with 7 years warranty.

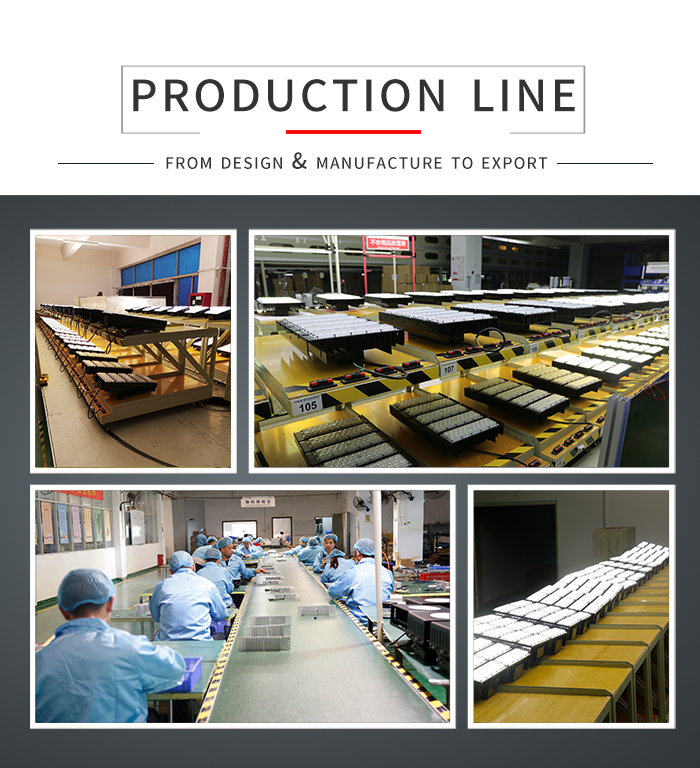

The production line of outdoor led flood light/led street light/led module

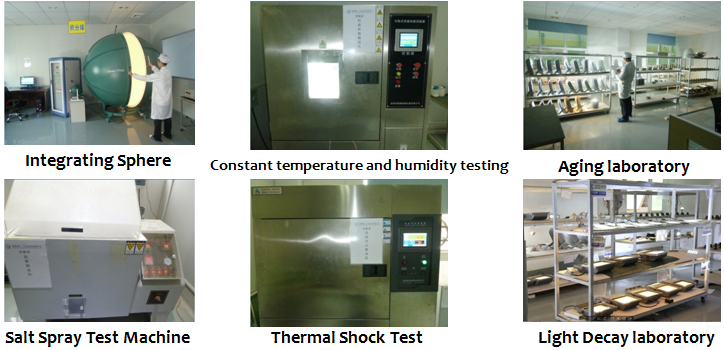

The test machines of outdoor led flood light/led street light/led module
Trading Conditions
- Payment term: 30% deposit by T/T or Western union; 70% before delivery.
- Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
- Samples time: 5 days.
- Shipping terms: FOB Shenzhen.
- Discounts will be determined by quantity.
- Welcome distributors to cooperate together.
Quality Control
- Before the order to be confirmed, we will check the material & colour temperature by sample strictly.
- We will trace different phases of production from the beginning.
- Every LED lights quality checked & cleaned before packing.
- Before delivery clients could send one QC or point the third party to check the quality.
- We will try our best to help clients when problems occur.
Warranty terms
- 3/5 years warranty.
- If the product has a failure under normal usage within the warranty period, we will provide free/rework new products based on the proof documents.
- If failure or damage is due to incorrect operation, wire connection, or not following our instructions, we will provide paid maintenance.

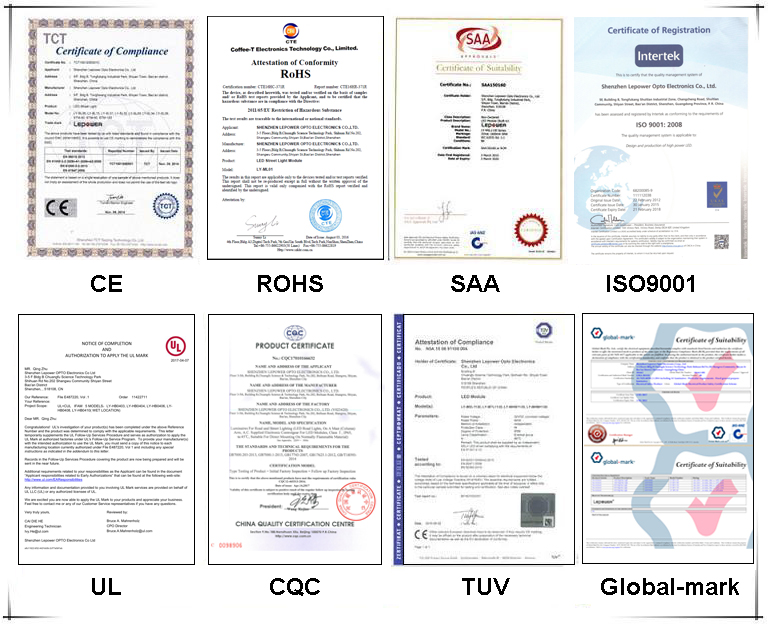

- Certification: CE/RoHS/CB
After sales service
- Terrific after-sales service: 24 hours around the clock & 12 months warranty.
- Life-long maintenance service for the product.
- We are ready to exchange or replace problematic items with equivalents upon receipt.
- For all inquiries, please contact us immediately for a fast reply.
Frequently Asked Questions
Can we make our own label on the sample lights?
Yes, we can use the label you offer. We can also provide professional OEM & ODM services.
Our project is on the seaside, what if your lights get corroded by sea water?
Our metal parts feature high corrosion resistance. We use premium surface treatments including electrostatic spraying and electrophoresis to protect the lights from salt water corrosion.
I would like to try a sample first, is that possible?
Absolutely. Our MOQ is only 1 piece, making it easy to test quality via samples before establishing long-term, win-win cooperation.

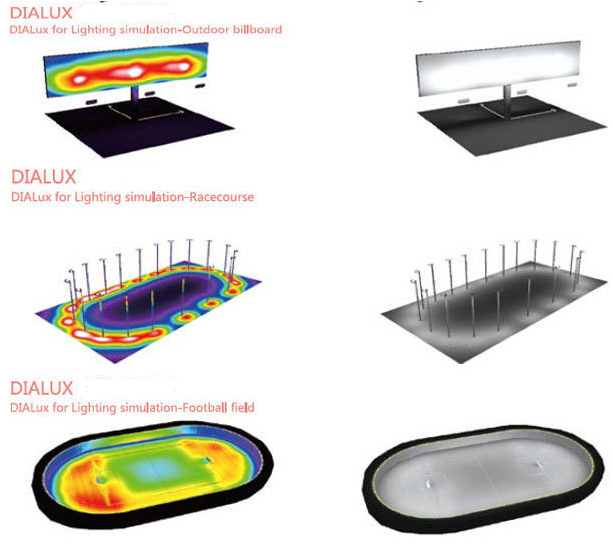

We have a stadium project requiring lighting design, can you help us?
Yes, our professional design team can provide you with the best lighting layout solutions. If you prefer to design yourself, we can readily provide the necessary IES files.
I have a warehouse/workshop, what information do you need to offer suggestions?
Please provide us with:
- The total area of the warehouse/workshop.
- The proposed installation height.
- Your illumination (lux) requirements.
What is the standard warranty and certification support for these lights?
Our lights come with a 3/5-year warranty, alongside a 7-year warranty for the high-efficiency driver. All products conform to CE, RoHS, and CB international standards.
